Ubiquiti UAP Networks UniFi AP 300 Mbit/s Power over Ethernet (PoE)

Ubiquiti
UAP – guarantee of a proper choice
The UniFi series is the answer to all past wireless connectivity issues. A
change for the better can be seen in the case of parameters and quality.
Hundreds of thousands of positive recommendations from users who own Ubiquiti
solutions are the best proof of its quality.

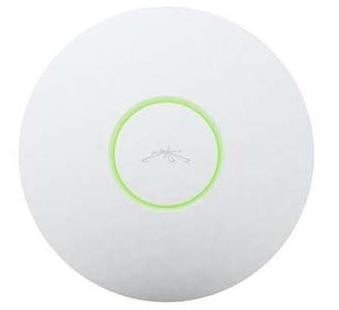

The UniFi UAP access point is a standard 802.11n MIMO device which performs
perfectly in high capacity wireless networks. Data transfer through a
wireless LAN network achieves the speed of 300 Mbps. The device has a maximum
range of 120 m (indoor).

Use

UAP can be used in various environments. It fits perfectly into the
infrastructure of hotels, schools, offices and other locations where high
bandwidth is required. Simple use and solid construction translate into a
long, problem free life cycle.


Key features
reliable wireless connection
scalability
quick deployment and intuitive use
easy configuration
lack of fees for software

Innovative features

The device works in the 2.4 GHz band and supports VLAN networks. It
complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n and IEEE
802.1Q standards. It includes one Ethernet LAN (RJ-45) port. In terms of
encryption it uses WEP, WPA-PSK, WPA-TKIP and WPA2-AES.

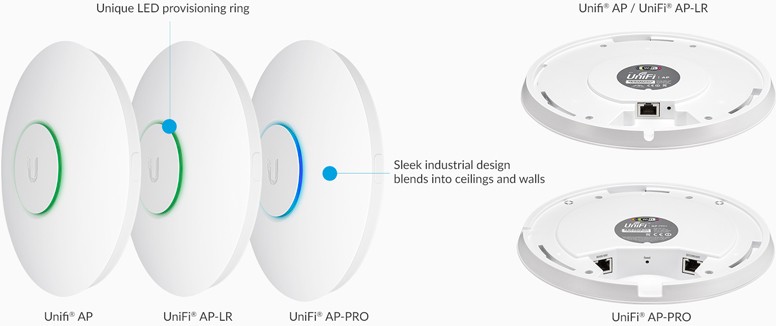

Modern design

The device is popular among users not only because of its reliability but
also thanks to its original, minimalist design. Its compact case easily
morphs with various environments, whether mounted on a wall or ceiling. A LED
ring is one of its stand-out features. The device, apart from its great
looks, is distinguished by high quality and durability.

Comparison


  UAP-IW UAP UAP-LR UAP-PRO
2.4 GHz Speed¹ 150 Mbps 300 Mbps 300 Mbps 450 Mbps
5 GHz Speed¹       300 Mbps
Range¹ 25 m (82 ft) 122 m (400 ft) 183 m (600 ft) 122 m (400 ft)
Gigabit Ethernet

Secondary Ethernet Port


Wi-Fi Standards 802.11 b/g/n 802.11 a/b/g/n 802.11 a/b/g/n 802.11
a/b/g/n
2.4 GHz

5 GHz

Simultaneous Dual-Band

Ubiquiti Passive PoE

802.3af PoE
²

Security Lock

¹ Speed and Range values may vary and are based on optimal
environments.

² UniFi switch support only.

Structure example

PoE Switch Compatibility for UAPs and UVCs
AP/Camera
Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.
