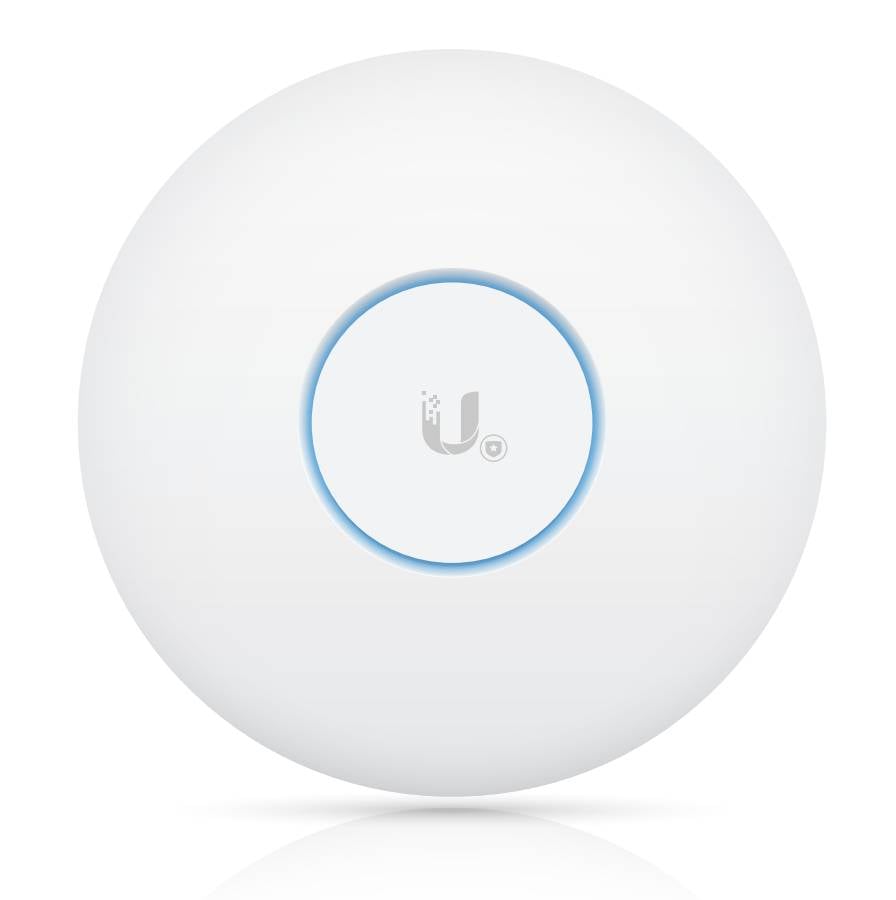

Ubiquiti Networks UAP-AC-SHD wireless access point 1000 Mbit/s White Power over Ethernet (PoE)
UniFi AC
SHD – safety combined with performance
The UAP-AC-SHD by Ubiquiti is the first 802.11ac Wave 2 access point with
extended protection. Thanks to RF monitoring, it is an excellent solution for
hospitals, banks, universities and other facilities which collect
confidential information.
Ultramodern solutions
The airView tool analyzes all available RF channels without regardless of
its performance or customer activity disruption. AirTime analyzes Wi-Fi
packets to create a real-time visualization, allowing UniFi AC SHD AP to
automatically select the best channel for optimal performance of the entire
installation.
Technology
UniFi AC SHD AP works as WIPS (Wireless Intrusion Prevention System) and
WIDS (Wireless Intrusion Detection System). MU MIMO 802.11ac Wave 2
technology allows it to communicate with multiple clients at the same time,
significantly increasing user bandwidth and overall standard of
service.
UniFi
UniFi comprises a scalable, comprehensive system of devices covering many
locations around the world – all controlled by a single interface available
via Internet or local network.
Comparison
UAP‑AC‑PRO UAP‑AC‑HD UAP‑AC‑SHD
Dimensions **196.7 x 35 mm **220 x 48.1 mm **220 x 48.1 mm
Environment Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor
2.4 GHz Radio Rate 450 Mbps 800 Mbps 800 Mbps
5 GHz Radio Rate 1300 Mbps 1733 Mbps 1733 Mbps
PoE Mode 802.3af PoE/802.3at PoE+ 802.3at PoE+ 802.3at PoE+
Ports (2) 10/100/1000 Ethernet (2) 10/100/1000 Ethernet (2) 10/100/1000
Ethernet
Wi‑Fi Users 200 Users 500+ Users 500+ Users
airTime ✕ ✕ ✓
airView ✕ ✕ ✓
WIPS ✕ ✕ ✓
Manufacturer’s content
Read more in the manufacturer’s documentation
Read the manual
Ceiling-mounted
WiFi 5 AP with 8 spatial streams designed to support high client density
environments.
WiFi 5
8 spatial streams
140 m² (1,500 ft²) coverage
1,000+ connected devices
Powered using PoE+*
(2) GbE uplinks
*PoE power adapter included with single unit purchases.
