Ubiquiti Networks UF-MM-10G-20 network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
KSh57,468.55
**
Ubiquiti
UF-MM-10G-20 – set of functional U Fiber modules
Use the tested Ubiquiti solutions to create connections between SFP
sockets.

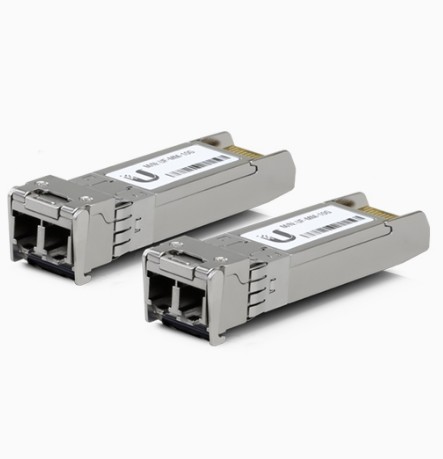

This module is a multi-mode device equipped with two LC connectors. The
length of the wave is 850 nm with 10 Gbps speed.
The device is available in single-mode and multi-mode versions.
Comparison
UF-MM-1G
UF-MM-10G
UF-SM-1G-S
UF-SM-10G
UF-SM-10G-S
Supported Media Multi-Mode Fiber Multi-Mode Fiber Single-Mode
Fiber Single-Mode Fiber Single-Mode Fiber
Connector Type (2) LC (2) LC (1) LC (2) LC (1) LC
BiDi N/A N/A ✓ N/A ✓
TX Wavelength 850 nm 850 nm
Blue
1310 nm
Yellow
1550 nm
1310 nm
Blue
1270 nm
Red
1330 nm
RX Wavelength 850 nm 850 nm
Blue
1550 nm
Yellow
1310 nm
1310 nm
Blue
1330 nm
Red
1270 nm
Data Rate 1.25 Gbps SFP 10 Gbps SFP+ 1.25 Gbps SFP 10 Gbps SFP+ 10 Gbps
SFP+
Cable Distance 550 m 300 m 3 km 10 km 10 km
Pack Options 2-Pack, 20-Pack 2-Pack, 20-Pack 1-Pair, 10-Pairs 2-Pack,
20-Pack 1-Pair, 10-Pairs
Use
Manufacturer’s content
Read more in the manufacturer’s documentation
