UVC-G3-Dome-5
– new generation, better quality
Innovative reliability and design. Ubiquiti skilfully combines the
company’s signature design with modern technologies. The UVC-G3-Dome-5 set
perfectly complements a company’s surveillance structure.

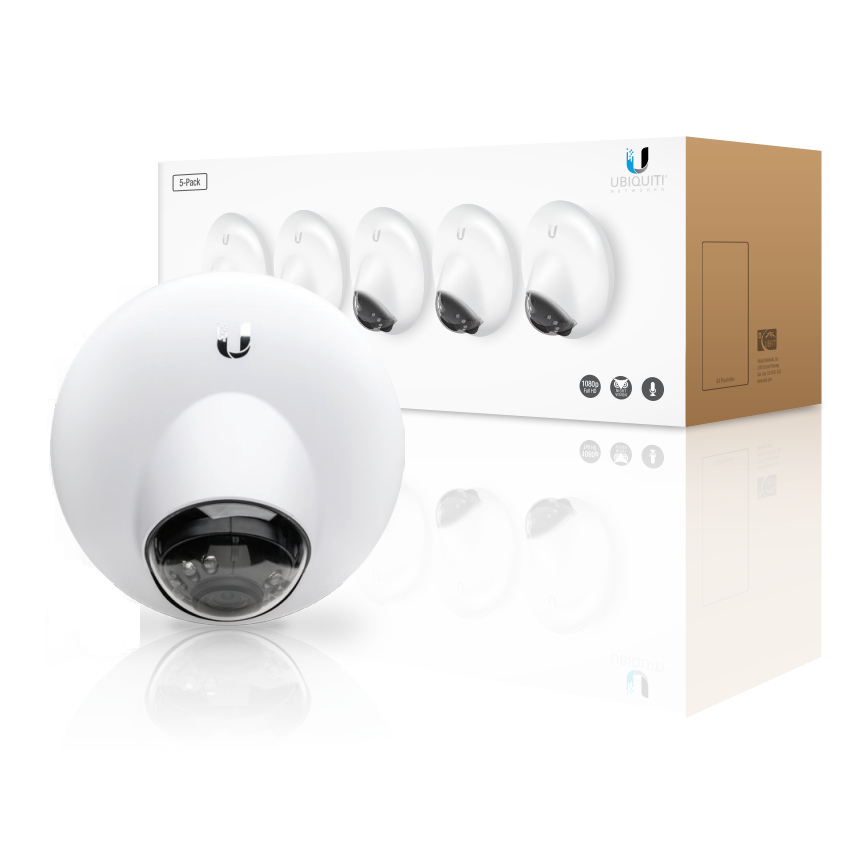

This set of five innovative UVC-G3-Dome cameras represents a new generation
of image recording UniFi solutions. It provides a high quality, 1080p HD
image. The set can be used both indoors and outside (under an overhang) and
records images during both day and night hours.

Intuitive use

An intuitive management system enables users to manage the cameras and live
stream their feed to smartphones and tablets with iOS and Android.

Key features
1080p Full HD, 30 FPS
EFL 2.8 mm, ƒ/2.0
wide angle
802.3af PoE or 24V Passive PoE
inbuilt microphone
mounted on walls or ceilings

Use

The cameras are an extraordinary addition to a company’s surveillance
systems. This is just one example of the use of the cameras.

Quick and easy installation

The device’s installation is effortless. It can be mounted on walls or
ceilings with a wide recording angle in mind.

Comparison


  UVC UVC-Dome UVC-PRO UVC-Micro UVC-G3-Dome
Resolution 720 HD, 30 FPS 720p HD, 30 FPS 1080p Full HD, 30 FPS 720p HD, 30
FPS 1080p Full HD, 30 FPS
Lens 3.6 mm/F1.8 1.96 mm/F2.0 3x Optical Zoom, F=3-9 mm 2.38 mm/F2.4 EFL
2.8 mm, ƒ/2.0

PoE Switch Compatibility for UAPs and UVCs
AP/Camera
Model US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W
UVC-G3

✓ ✓ ✓ ✓ ✓ ✓
UVC-G3-DOME ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP

✓ ✓ ✓ ✓ ✓ ✓
UAP-LR

✓ ✓ ✓ ✓ ✓ ✓
UAP-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LITE¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-LR¹ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-M-PRO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-IW-PRO² ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓

✓ Compatible with the UniFi switch.

 Requires Instant 802.3af Gigabit PoE Converter:
INS-3AF-I-G
 or INS-3AF-O-G
.

 Requires 802.3at power; switch provides 802.3af only.

Note:

¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016
require the Instant 802.3af Gigabit PoE Converter.

² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all
of the switches listed above except for models US-8 and US-8-60W.

Manufacturer’s content

 Read more in the manufacturer’s documentation

 Read the manual

Specifications
