Ubiquiti PBM3 Networks PowerBridge network antenna Sector antenna 20 dBi

PBM3 –
efficient Ubiquiti antenna
The panel antenna is an efficient solution offered by Ubiquiti as a
completion of the airMax series.

The Ubiquiti PBM3 panel antenna works in the 3.3-3.8 GHz band. The antenna
is characterised by a maximum gain of 20 dBi. The antenna enables the
creation of fast wireless connections for distances of up to 20 km.

Work

This product is equipped with a 400 MHz Atheros MIPS 24KC processor. The
device uses 64 MB internal memory and 8 MB flash drive memory. It also
includes one Ethernet port, 10/100 BASE-TX (cat. 5, RJ-45).

Construction

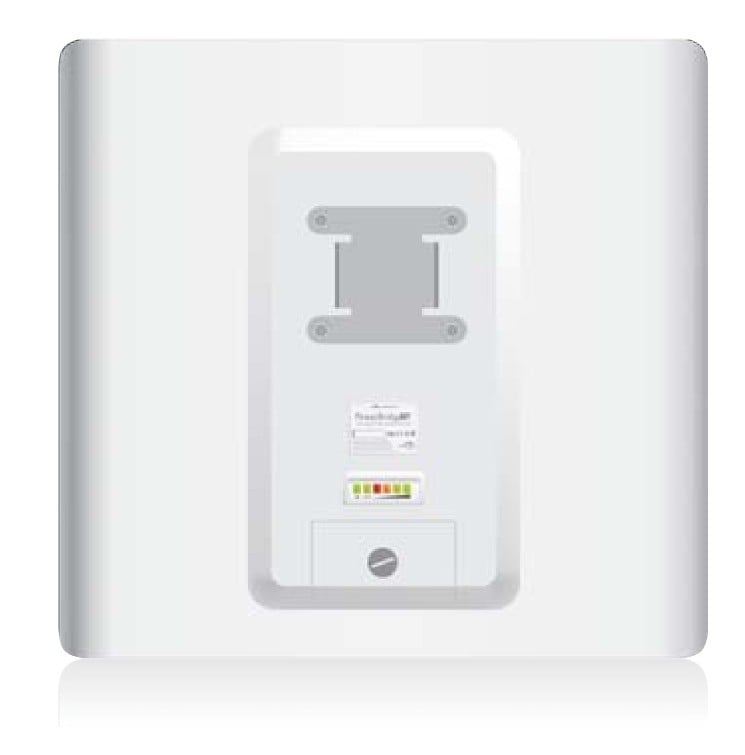

The solid, durable construction of the PBM3 panel antenna makes it highly
resistant to weather conditions. It can be used at temperatures ranging from
-30 to 80 degrees Celsius and humidity from 5% to 95%. The compactly built
and aesthetic design result in a device that will blend in with nearly any
environment.

Installation

Another advantage of the product is its quick, intuitive ‘plug & play’
installation.

Key features
works in the 3 GHz band
150 Mbps bandwidth
20 km range
Dual Linear polarisation
AirMax technology
445 x 416 x 34 mm size

Comparison


PBM3

PBM365

PBM5

FREQUENCY 3 GHz 3.65 GHz 5 GHz
THROUGHPUT 150+ Mbps 150+ Mbps 150+ Mbps
RANGE 20+ km 20+ km 20+ km
DIMENSIONS 445 x 416 x 34 mm 445 x 416 x 34 mm 445 x 416 x 34 mm
NETWORKING INTERFACE (1) 10/100 Ethernet Port (1) 10/100 Ethernet Port (1)
10/100 Ethernet Port

Manufacturer’s content

 Read more in the manufacturer’s documentation

Specifications
