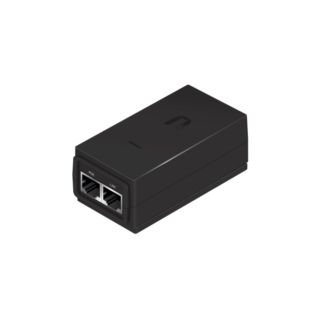

Ubiquiti POE-24-12W-G-WH 24V DC PoE Adapter
KSh1,734.55
Ubiquiti
PoE Adapters provide a variety of features to help protect your PoE
devices.
Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Ubiquiti POE-24-12W-G-WH. Ethernet
interface type: Gigabit Ethernet. Product color: White. Power over Ethernet
(PoE) voltage: 24 V, AC adapter input voltage: 100 – 240 V, AC adapter
frequency: 50/60 Hz. Certification: CE, FCC, IC, UL. Weight: 2.65 oz (75 g),
Dimensions (WxDxH): 3.5 x 1.81 x 1.3″ (89 x 46 x 33 mm)
Related products
-
Read moreReliable
Ubiquiti POE-24-12W-G
The Ubiquiti’s wide offer of products includes reliable and high quality
POE-24-12W-G adapters.The PoE Ubiquiti POE-24-12W-G is characterised by 90-260 V, 47-63 Hz input
voltage. It is compatible with airGateway series solutions.Construction
POE-24-12W-G is equipped with two Ethernet LAN (RJ-45) ports. It is
dedicated to powering 24 V to 0.5 A devices. It is equipped with a power
signal LED and a reset button.Use
The adapter can be used with CPE client stations and base stations. It can
be used at temperatures up to 40 degrees Celsius. The use of optional
mounting brackets allows it to be mounted on a wall.Key features
2 Ethernet LAN (RJ-45) ports
24 V PoE
90-260 V voltageComparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Read moreUbiquiti
POE-24-12W efficiency and reliability
The PoE Ubuiqiti POE-24-12W adapter protects from electrostatic discharges
providing grounding and surge protection.The product is intended for 24 V devices. It can be mounted on walls with a
selection of optional mounting brackets.Parameters
The electrical rating required to power the device is 90-260 V, 47-63 Hz.
The adapter is equipped with two power signal LEDs. It works well with base
stations and client CPE stations. It is compatible with airGateway series
solutions.Key features
2 Ethernet LAN (RJ-45) ports
12 W power consumption
110-220 V voltageComparison
POE-15-12W POE-24-12W POE-24-12W-G POE-24-24W POE-24-24W-G
OUTPUT VOLTAGE 15VDC @ 0.8A 24VDC @ 0.5A 24VDC @ 0.5A 24VDC @ 1.0A 24VDC @
1.0A
GIGABIT LAN Port NO NO YES NO YES
DIMENSIONS 85 x 44 x 29 mm 87 x 44 x 29 mm 87 x 44 x 29 mm 88 x 57 x 33
mm 88 x 57 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
-
Add to cartAn adapter
that can power UniFi PoE+ devices with wireless mesh applications, or offload
PoE switch power dependencies.Delivers up to 30W of PoE+
Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR,
and other PoE+ devicesSurge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
-
Read moreUbiquiti UACC-PoE+-2.5G. Ethernet
interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates:
10,100,1000,2500 Mbit/s. Product color: White, LED indicators: Status, Power
protection features: Over current, Peak pulse, Surge protection. Power over
Ethernet (PoE) voltage: 48 V, AC adapter input voltage: 100 – 240 V, AC
adapter frequency: 50/60 Hz. Compliance certificates: CCC, CE, Federal
Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL.
Width: 2.44″ (62 mm), Depth: 1.38″ (35 mm), Height: 3.66″ (93
mm) -
Read moreUbiquiti
POE-50-60W – functionality and reliability
The Ubiquiti POE-50-60W adapter is a high quality device that complements
the Ubiquiti solutions.The POE-50-60W supports the passive Ethernet power solution. It is a
reliable device. In combination with the Ubiquiti TOUGHCable grounding system
it provides better protection from electrostatic discharges.Parameters
The device’s output voltage is 50 V with 1.2 A input power and 60 W power
consumption. The device is IEC 60950-1:2005+A1, UL60950-1, EN55022:2010 and
EN55024:2010 compliant.Construction
POE-50-60W is equipped with two Ethernet Gigabit RJ-45 ports. The
device is based on durable components which results in quality and
reliability as well as resistance to unfavourable weather
conditions.Key features
Gigabit interface
2 Ethernet LAN (RJ-45) ports
PoE 50 V
1.2 A input power
60 W power consumptionComparison
POE-48-24W POE-48-24W-G POE-50-60W
OUTPUT VOLTAGE 48VDC @ 0.5A 48VDC @ 0.5A 50VDC @ 1.2A
GIGABIT LAN Port NO YES YES
DIMENSIONS 88 x 57 x 33 mm 96 x 62 x 35 mm 101 x 60 x 33 mmManufacturer’s content
Read more in the manufacturer’s documentation
Specifications
