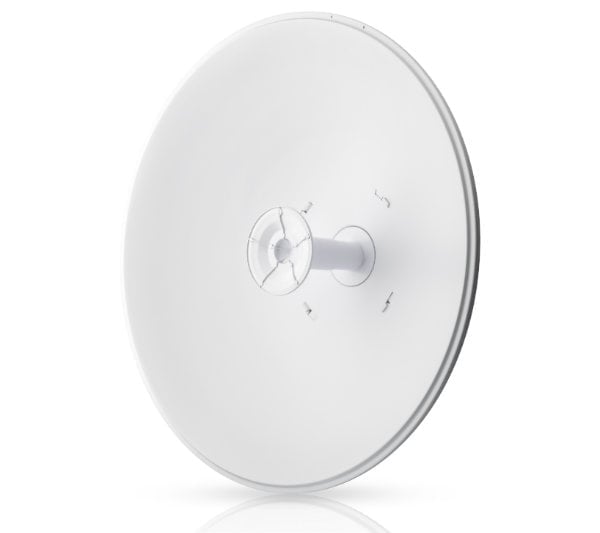

Ubiquiti RD-5G30-LW Networks Antennen network antenna Directional antenna 30 dBi
KSh11,330.09
5 GHz, 30
dBi RocketDish LW antenna with extended depth of the dish reflector that
rejects noise interference in co-location deployments.
2×2 dual-polarity performance
Robust mechanical design for outdoor application use
Compatible with Rocket Prism 5AC
Ubiquiti
RD-5G30-LW efficient solution with a perfected design
The Ubiquiti RD-5G30-LW is a directional antenna with a light design. It
works in the 5 GHz band which allows for the creation of efficient
connections.
The Ubiquiti RD-5G30-LW creates efficient and long distance radio links
which use the MIMO 2×2 technology and work in the 5 GHz band.
Construction
The RocketDish 5G30-LW is a lighter version of the popular RD-5G30 solution.
It weighs only 7.4 kg. Its innovative case is built from an alloy resistant
to corrosion and other unwanted processes.
Build
High resistance to unfavourable weather conditions leads to a long,
problem-free life cycle. The antenna’s industrial design is innovative. It
works perfectly where reliability and efficient problem-free functioning is
required.
Easy installation
The Ubiquiti antenna is distinguished by easy installation with Rocket. It
does not require the use of any specialised tools. The device is equipped
with a handle which allows for precise setting up of the antenna.
Use
The device is used e.g. to create Point-to-Point and Point-to-Multipoint
connections.
Key features
works in the 5 GHz band
30 dBi gain
Dual Linear polarisation
light construction
easy installation
Comparison
RD-2G24 RD-3G26 RD-5G30 RD-5G30-LW RD-5G34
FREQUENCY 2.4 GHz 3 GHz 5 GHz 5 GHz 5 GHz
GAIN 24 dBi 26 dBi 30 dBi 30 dBi 34 dBi
POLARIZATION Dual-Linear Dual-Linear Dual-Linear Dual-Linear Dual-Linear
Max. VSWR 1.6:1 1.4:1 1.4:1 1.6:1 1.4:1
F/B Ratio 28 dB 33 dB 34 dB 30 dB 42 dB
Dimensions* 650 x 650 x 295 mm 650 x 650 x 300 mm 650 x 650 x 304 mm 650 x
650 x 386 mm 1050 x 1050 x 421 mm
* Dimensions exclude pole mount and Rocket (Rocket sold separately)
Manufacturer’s content
Read more in the manufacturer’s documentation
Read the manual
