UHF Line Amplifier 13dB “F” LTE 5G Televes

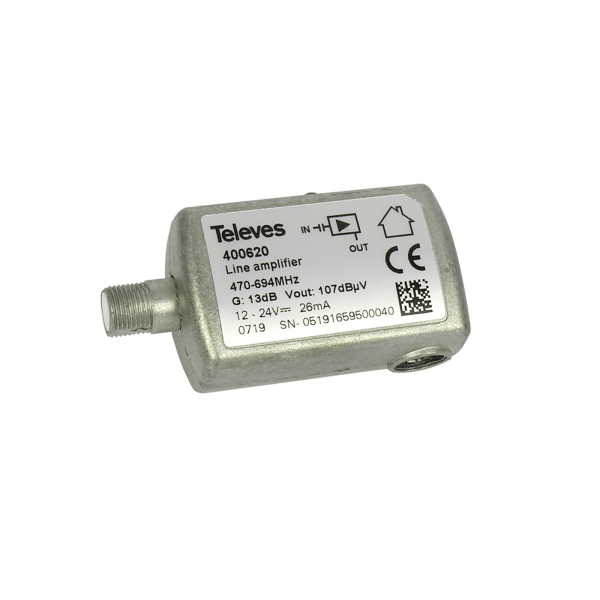

Line Amplifier 1 input / 1 output UHF 13dB LTE 5G Televes 400620
Line amplifier for UHF with 13dB of gain and 5G LTE filter (470-694 MHz). Format with “F” type connectors: female (input) and male (output).
Economical and compact amplifier designed to install prior to headend devices to obtain an optimal input level.
The amplifier is powered by the coaxial cable itself and admits DC current pass to power active UHF antennas, compatible with BOSS systems from Televes and other manufacturers.
UHF Line Amplifier adapted to the 2nd Digital Dividend, with 13dB of gain and “F” connectors
What are the main characteristics of the Televes 400620 Line Amplifier?
Removes the LTE700/5G band
Output powered
Plug-in format with ?F? connectors
Status LED
What technical specifications does the Televes 400620 Line Amplifier have?
Frequency range MHz 470…694
Gain dB 13
Noise figure dB 4
Max.output level EN50083 dB?V 107
DIN 4500B 98
Power supply/ Current Vdc / mA 12 … 24 / 26
