Vention Cat.6A UTP RJ45 Modular Plug Transparent 100 Pack – IDGR0-100

Name: Vention Cat.6A UTP RJ45 Modular Plug Transparent 100 Pack – IDGR0-100 | +254720548999
Price: 1700.00 KES
Availability: InStock

KSh1,700.00

Description

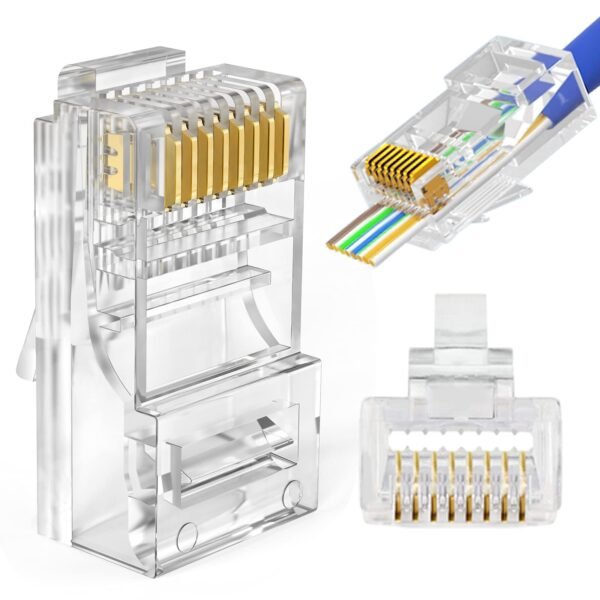

Vention Cat.6A UTP RJ45 Modular Plug Transparent 100 Pack – IDGR0-100
Enhanced Cat.6A Performance Architecture

The IDGR0-100 modular plugs feature optimized contact geometry specifically designed for Cat.6A cables. The gold-plated contacts provide superior conductivity and corrosion resistance. Additionally, the precision-molded housing ensures consistent impedance matching across the 500 MHz frequency range.

Furthermore, these plugs incorporate load bar technology that maintains proper wire spacing during termination. This design element prevents crosstalk and signal degradation that commonly occurs with standard Cat.5e plugs used on higher-category cables.

Professional-Grade Construction

Each Vention IDGR0-100 plug utilizes high-impact polycarbonate housing materials. The transparent design allows visual inspection of wire positioning before and after crimping. Moreover, the reinforced strain relief boot protects the cable jacket from mechanical stress during installation and use.

The contact pins feature three-point contact design that ensures reliable electrical connection with RJ45 jacks. This configuration provides redundant contact paths that maintain connectivity even under vibration or thermal cycling conditions.

Termination Compatibility

These modular plugs accommodate both solid and stranded UTP cables with conductor sizes ranging from 22 to 26 AWG. The IDGR0-100 plugs work seamlessly with standard crimping tools and cable preparation equipment. Additionally, the universal design supports both T568A and T568B wiring standards.

The load bar insertion system simplifies field termination procedures. Consequently, installation technicians can achieve consistent results with reduced training requirements and faster termination times.

Quality Control Features

Each plug undergoes precision molding to ensure dimensional accuracy and contact alignment. The transparent housing enables immediate visual verification of proper wire insertion and color code sequence. Furthermore, the consistent contact spacing prevents intermittent connection issues that plague lower-quality connectors.

The Vention IDGR0-100 plugs maintain their performance characteristics across temperature ranges from -40°C to +70°C. This thermal stability ensures reliable operation in both indoor and outdoor installations.

Ideal User Applications
Network Installation Contractors – The 100-pack quantity and Cat.6A performance rating support large-scale commercial installations requiring 10 Gbps capability
Data Center Technicians – The 500 MHz bandwidth and precision contact geometry handle high-density server connections with minimal signal degradation
Telecommunications Installers – The transparent housing and load bar design enable quick visual inspection and consistent termination quality across multiple technicians
IT System Integrators – The gold-plated contacts and wide temperature range provide long-term reliability in mission-critical network infrastructure
Educational Institution Network Administrators – The bulk packaging offers cost-effective solutions for campus-wide network upgrades requiring future-proof 10GbE support
Technical Specifications
Connector Standards
Category: Cat.6A
Compliance: TIA/EIA-568-C.2, ISO/IEC 11801-2
Interface: 8P8C (RJ45)
Wiring Standards: T568A, T568B compatible
Performance Characteristics
Bandwidth: 500 MHz
Data Rate Support: Up to 10 Gbps (10GBASE-T)
Impedance: 100 ohms ± 15%
Insertion Loss: ≤0.4 dB at 500 MHz
Return Loss: ≥10 dB (1-500 MHz)
Contact Specifications
Contact Material: Phosphor bronze
Contact Plating: 50 microinch gold over nickel
Contact Configuration: 3-point contact design
Contact Resistance: ≤20 milliohms initial
Cable Compatibility
Cable Type: UTP (Unshielded Twisted Pair)
Conductor Gauge: 22-26 AWG
Conductor Type: Solid or stranded copper
Cable Diameter: 5.0-8.5 mm
Physical Construction
Housing Material: High-impact polycarbonate
Housing Color: Transparent/Clear
Load Bar: Integrated wire management
Strain Relief: Reinforced boot design
Environmental Specifications
Operating Temperature: -40°C to +70°C
Storage Temperature: -55°C to +85°C
Humidity: 5% to 95% non-condensing
Durability: 750+ mating cycles
Package Information
Model Number: IDGR0-100
Package Quantity: 100 pieces
Package Type: Bulk pack
Weight: Approximately 0.8 kg per 100 pieces
