Winds mounting kit for ?45mm Mast

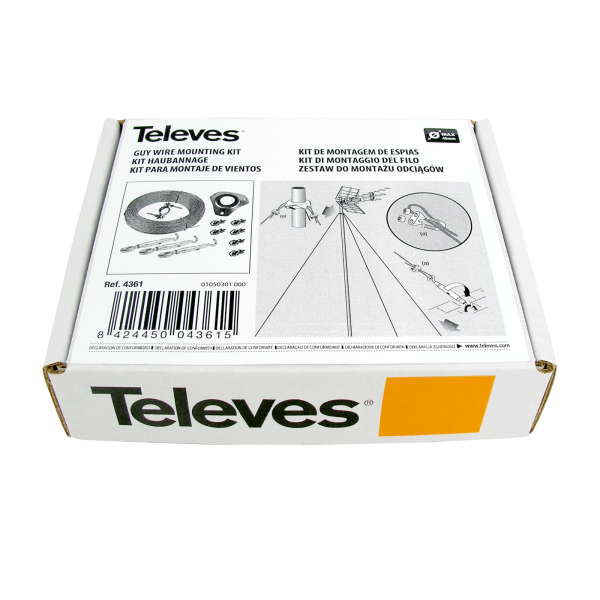

4361 Televes Wind Mounting Kit
Winds mounting kit for ** 45mm diameter masts. Ideal for when you need to mount masts with 5 meters or more. The plate has zinc coating and RPR to improve its resistance against corrosion.
The kit includes everything necessary for the installation of the winds: plate with flange for winds (ref. 2408), 3 tensioners and 6 cable ties, 25m of galvanized steel cable, ** 2mm.
To fasten it to the ground, we recommend the use of a metal stud with a ring.
Televes woodwind kit for ? 45mm masts.
What does the Televes 4361 wind mounting kit include?
The plate has a zinc treatment + RPR: Great resistance to corrosion
Cable break voltage greater than 200 Kp (1960 N)
25 meters of steel cable
Mast clamp for three tension points
Mast clamping stop
3 turnbuckles
6 wire rope end clips
Maximum tube diameter ? 45mm
