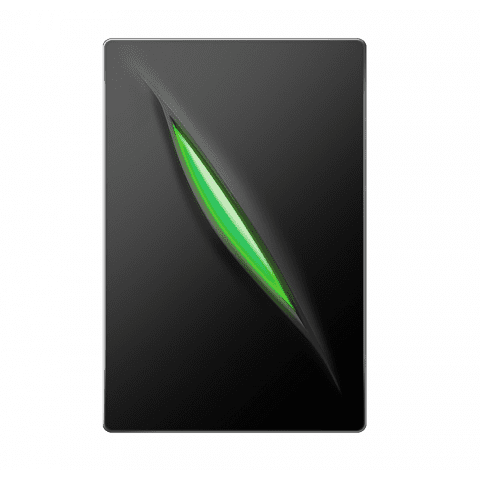

ZKteco KR101 Smart Card Reader
Description
ZKteco KR101 Smart Card Reader
ZKTeco ZK KR101M Mifare Reader works with cards, bands and key fobs of the Mifare standard 13,56МHz. Reading range 5 cm. Sound / light indication. Plastic housing, protection class IP65, for indoor and outdoor installation.
Product: RFID Reader
Model: ZK KR101M
Type of installation: Wall, Overhead
Installation location: Inside, Outside
ID Type: Card, Keyfob, Bracelet
Identification Standard: Mifare
Data interface: Wiegand
Reading technology: RFID
Reading range : 5 cm
Indication: Light, Sound
Model KR102E/M
Read Range KR102E Up to 10 CM / KR102M Up to 5 CM
Reading time ( Card ) s 300 ms
Power DC 6-14V / Max.70mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Card Format 26bit Wiegand (E) 34bit Wiegand (M)
Output Pin Format 8 bits
LED indicator 2 Color LED Indicators (Red and Green)
Beeper yes
Operating temperature -10° to +70°C”
Operating Humidity 10% to 90% (relative humidity non-considered)
