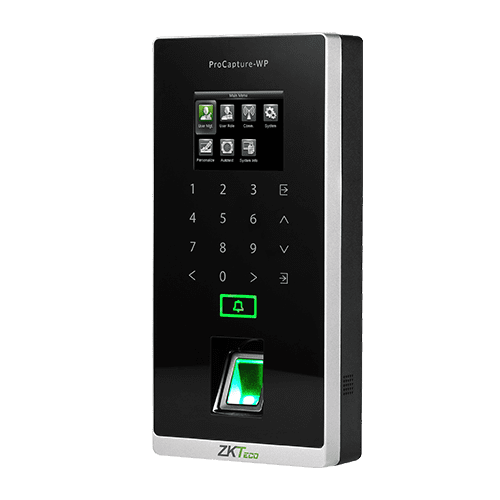

ZKTeco ProCapture-WP-iClass Standalone Fingerprint Access with iClass Control IP65 Reader
Description
ZKTeco ProCapture-WP-iClass Standalone Fingerprint Access with iClass Control IP65 Reader
ProCapture-WP is a next-generation IP65-rated outdoor weather-proof access control reader utilizing advanced SilkID fingerprint sensor technology which can store & match up to 20,000 fingerprints (1:N). Its outstanding performance provides a high identification rate towards dry, wet and rough fingers, being capable to detect live fingers for a higher security level.
The fingerprint verification speed has been dramatically increased by its optimized fingerprint algorithm and the brand new ZMM220 hardware platform, equipped with a fast 1.2GHz processor.
Biometric Preference – Reliable, durable and highly accurate SilkID fingerprint sensor with latest fingerprint matching algorithm which provides less than 1.5 second user recognition
Capacity – Stores up to 20,000 fingerprint templates and 10,000 cards. Data can be backed up to a USB flash drive and transferred to another ProCapture-WP in the absence of network connectivity
Communication – Weigand output for connecting to an access control panel and Ethernet port for fast and reliable network communication. Optional Wi-Fi available
Options – ProCapture-X can be configured with optional internal modules which read HID Prox, HID iclass or 13.56 MHz
Display/Audio – Works without a computer. Complete setup and programing can be done via the ProCapture-WP keypad and embedded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints, cards and passwords
Full Access Control Built-In – Relay outputs for electric lock and alarm. Inputs for door status sensor and request to exit hardware. Supports multiple time zones and personnel groups for programming valid entry zones
For Software Developers – Free SDK and development tools are available for developers/partners who wish to integrate MB700-ID with any application which requires verifying people. Custom development is also available for OEM partners upon request
Specifications
Capacity
Fingerprints: 2,000
Cards: 10,000
Access Control Interface
Lock Relay Output
Alarm Output/Auxiliary Input
Exit Button/Door Sensor
Doorbell Output
Communication
TCP/IP, RS485 (for slave reader)
Wiegand Input/Output
USB Host
Hardware
SilkID Fingerprint Sensor
2.4 Inch TFT-LCD Touch Screen
125 kHz ZKAccess Card Reader
Tamper Switch Alarm
Standard Functions
Access Levels/Groups/Holidays
DST/Bell Schedule
Duress Mode (Password)
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver
Software Compatibility
ZKBioSecurity
Additional Info
Working Temperature: 14° F to 122° F
Dimensions: 8in x 3.5in x 1in
Package Includes: 12V 3A Power Supply
Power
Operating Voltage 12V DC
Current Draw < 500mA
