Category: Optical
Optical
Showing all 53 results
-

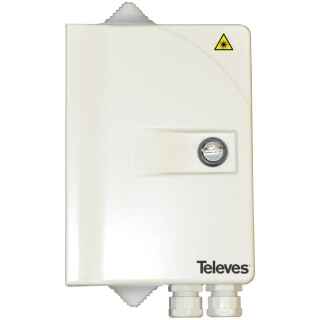

Add to cartDesigned to act as an element of passage and derivation of fiber optic hoses. It is usual for use in FTTH projects for the interior of buildings (usually installed in the secondary register). It has the capacity to house up to 16 mergers in its interior. Televes 231301
-

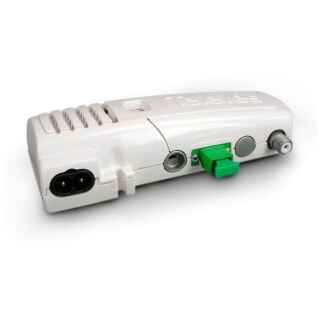

Add to cartThe domestic fiber optic receiver can convert into its original RF format?the TV signals which were previously converted into optical for their?transmission through an optical network.
-
Domestic F.O. Rx MATV “SC/APC” 1550nm OLC Televes
KSh39,084.00Add to cartThe domestic fiber optic receiver can convert into its original RF format?the TV signals which were previously converted into optical for their?transmission through an optical network.
-
Add to cartDesigned to work as a pass-through and diverting element for optical fiber cables. It can be used both indoors and outdoors and allows the use of up to 12 SC Simplex or LC Duplex connectors, enabling quick connectorisation, as well as the use of pre-connectorised patch cords. Can house up to 24 splices.
-
Add to cartComplement to expand the capacity of the ultra-compact terminal enclosure (Ref. 231304), it can house up to 12 additional fibers.
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231526
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231520
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231521
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231522
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231523
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231524
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. Preconnected on the PAU of 2 SC / APC connectors, which allows the installer to introduce the equipment directly into the RTR and from there to pass the optical fiber without difficulty. Televes 231525
-
Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231536
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 15m Televes
KSh16,944.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231530
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 25m Televes
KSh19,572.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231531
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 40m Televes
KSh23,504.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231532
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 55m Televes
KSh27,436.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231533
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 70m Televes
KSh31,376.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231534
-
Fiber optic PAU 4 Outputs SC/APC 4 Fiber 85m Televes
KSh35,306.00Add to cartDevice enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Incorporates pre-connection on the 4-SC/APC connector UAP.?Televes 231535
-
Ikusi FRD-110 Terrestrial optical fiber receiver
KSh15,086.00Add to cartOptical fiber distribution of DTT signals in single family residential and collective installations
Features
Frequency range 45-862 MHz
Optical wavelength 1300-1560 nm
Optical connectors SC/APC
Optical window -13 … +1 dBmTECHNICAL SPECIFICATIONS
INSTALLATION MANUAL
-
Add to cartFiber optic distribution of DTT and satellite TV signals in single family residential and collective installations.
Features
Frequency range 45-2600 MHz
Optical wavelength 1300-1560 nm
Optical connectors SC/APC
Optical window -13 … +1 dBmTECHNICAL SPECIFICATIONS
INSTALLATION MANUAL
-
Ikusi FRD-400 TV + SAT-IF Optical receiver
KSh87,112.00Add to cartOptical receiver TV+SAT-IF (47-2150MHz)
Main features
1 optical input (1290-1600 nm)
1 RF output (45-2150 MHz).
Connection of singlemode type optical fibre.
Especially designed for the delivery of terrestrial and satellite signals (analog and digital) over large collective installations.
Additional infoData Sheet
Installation Guide
-
Ikusi FTD-1110 TV Optical transmitter
KSh107,790.00Add to cartSolution for the distribution of TV terrestrial signals through optical fiber
Features
1 optical input with SC/APC connector
1 input TV 45 – 862 MHz
1 optical output 1550nm with SC/APC connectorTECHNICAL SPECIFICATIONS
INSTALLATION MANUAL
-
Ikusi FTD-1290 TV Optical transmitter
KSh155,744.00Add to cartSolution for the distribution of TV terrestrial signals through optical fiber
Features
1 optical input with SC/APC connector
1 input TV 45 – 862 MHz
1 optical output 1550nm with SC/APC connectorTECHNICAL SPECIFICATIONS
INSTALLATION MANUAL
-
Add to cartOptical transmitter module for ClassA Headend, TV+SAT-IF (47-2150MHz)
Main features
Solution for distribution of terrestrial TV and satellite IF signals (analog and digital) over large collective installations.
Connection of singlemode type optical fibre.
Ultralineal, APC-controlled, 4 mW DFB (Distributed Feedback) laser.
Fully compatible with PAL, SECAM, NTSC, FM, DVB-S, DVB-T, DVB-C and other standards.
TV and SAT-IF separate ways with very high RF amplification gain.
Independent OMI settings for TV and SAT-IF.
Additional infoData Sheet
Installation Manual
-
Main Terminal Enclosure 48 connectors Televes
KSh75,974.00Add to cartUp to 48 female-female adapters.??Designed to work as a distribution point for optical fibre cables. Commonly used in FTTH projects, where it simplifies the interconnection between the user’s network and the operator’s network (typical RITI installation). Televes 233002
-
Add to cartSAT receiving devices (IF) and DAB / DVB signals via fiber optics and coaxial delivered as SAT (IF) in QUAD format (4 output polarities + 1 terrestrial)
-
Add to cartThis complement of systems with optical LNB, receives an optical signal from TV (1100-1650nm) and recovers the original RF signal. It offers 5 RF outputs: one for terrestrial TV and another 4 for satellite TV in Quattro mode, that is, delivering one of the four TVSAT polarity and band combinations to each connector.
-
Add to cartThese devices are used when the optical signal is required for different active links and at the same time a non-intrusive element, like a test or monitoring equipment, has to be connected.
-
Add to cartThese devices are used when the optical signal is required for different active links and at the same time a non-intrusive element, like a test or monitoring equipment, has to be connected.
-
Add to cartThese devices are used when the optical signal is required for different active links and at the same time a non-intrusive element, like a test or monitoring equipment, has to be connected.
-
Add to cartDevice enabled as connection point to a fiber optic network. In ICT environments, and located in the Network Termination Register (RTR), it acts as a cut-off and test point for the optical network. It is also used as a connection point for optical fiber or as an optical splitter housing an optical splitter with 2 or 4 directions inside. Televes 231502
-
Add to cart16-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.?The T.0X format frame allows rack installation for optical fibre headends. Televes 234501
-
Add to cart32-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.?The T.0X format frame allows rack installation for optical fibre headends. Televes 234601
-
Add to cart8-way PLC splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range.?The T.0X format frame allows rack installation for optical fibre headends. Televes 234401
-
Add to cartDevice enabled as a connection point to a fiber optic network. In ICT environments, and located in the Network Termination Registry (RTR), it acts as a cutting point and test of the optical network. Includes fiber pre-terminated at one end with 2 SC/APC connectors.
-
PAU of FO 2 to 4 Outputs: 2 Dca Fibers of 40m….
KSh11,342.00Add to cartDevice enabled as a connection point to a fiber optic network. In ICT environments, and located in the Network Termination Registry (RTR), it acts as a cutting point and test of the optical network. Includes fiber pre-terminated at one end with 2 SC/APC connectors.
-
PAU of FO 2 to 4 Outputs: 2 Dca Fibers of 55m….
KSh13,164.00Add to cartDevice enabled as a connection point to a fiber optic network. In ICT environments, and located in the Network Termination Registry (RTR), it acts as a cutting point and test of the optical network. Includes fiber pre-terminated at one end with 2 SC/APC connectors.
-
Add to cartComponent PLC splitter of 16 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays. Televes 234550 -
Add to cartComponent PLC splitter of 2 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays. Televes 233750 -
Add to cartComponent PLC splitter of 32 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays. Televes 234650 -
Add to cartComponent PLC splitter of 4 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays. Televes 233950 -
Add to cartComponent PLC splitter of 8 outputs and SC/APC connectors, for optical signals in a range of 126-1650nm.
They are ideal for mounting in boxes or rack trays. Televes 234450 -
Power supply 20V 1.2A (for optical converter)
KSh9,650.00 -
Add to cartReceives two fibres with two Return Paths in the 1270 nm-1650 nm range, and restores the original signals in RF (5 MHz-300 MHz).?
Equipped with automatic gain control (AGC) for a constant RF level, irrespective of the optical input level. Televes 234901 -
SC/APC 16W optical splitter 1260…1650nm 14dB Televes
KSh26,712.00Add to cart16-way splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range. Specially designed to complement the Overlight series. Also recommended for applications with WideBand LNB, with optical fibre or GPON networks. Its compact chassis is suitable for maximum optimisation of the available space.
-
SC/APC 32W optical splitter 1260…1650nm 17dB Televes
KSh51,098.00Add to cart32-way splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range. Specially designed to complement the Overlight series. Also recommended for applications with WideBand LNB, with optical fibre or GPON networks. Its compact chassis is suitable for maximum optimisation of the available space.
-
SC/APC Optical Receiver/Demultiplexer (-5…+2dBm)…
KSh15,602.00Add to cartPassive receiver that captures an optical signal on a single fiber (1310/1490/1550nm), and demultiplexes it (WDM). The TV signal (1550nm) is converted to an RF output (54-2400MHz), while the 1310/1490nm wavelengths are destined to data signals (GPON) to distribute them through its optical port.
-
SC/APC Optical Receiver/Demultiplexer (-8…+1dBm)…
KSh58,136.00Add to cartThe FTTH receiver captures two satellite signals on a single fiber and demultiplexes them. The first one, in the wavelength 1310nm carries the dCSS satellite channels using an optical LNB (satellite operator SKY) while the second one in 1550nm, carries the DTT lineup plus a satellite offer using a second dish and a static dLNB.
The FTTH receiver has a physical switch that allows to select between dCSS SKY mode and FTA SAT mode. Depending of the selected choice, one of the two satellite signals plus the DTT lineup is delivered in the four RF outputs. In case of dCSS SKY mode, with the use of a single power supply, it powers up the dCSS optical converter (Ref. 237201).
Part of FULL SAT + DTT system to be used together with the FTTH transmitter televes-237301.
Highlights
DIN rail installation: this assembly provides safety and efficiency, as well as saving space, time and cost due its advantage by being able to integrate several electrical devices in an installation with a lower cabling density. It is also possible to mount it screwed on the wall
Distribution mode flexibility: a switch is included to choose between DTT+Satellite IF or DTT+dCSS/Legacy
High sensitivity in 1550 nm
High output voltage in the 4 RF outputs
Eco-Mode powering with dCSS SKY mode selected: if the STB is switched-off, it ceases to power up the dCSS optical converter, just delivering the DTT lineup with a very low power consumption
Features
Compatible with Legacy and dCSS multiswitches
Equipped with a power supply output to feed an optical converter
Very pleasant and compact format
SC/APC and FC/PC optical connectors
F-type RF connectors
Specifications
RF Output
RF connector 4x F-female
Bandwidth MHz 47 … 2150
Impedance Ohm 75
Return losses ?dB > 7,5
Planicity ?dB ? 2,5
Slope dB 1
Self-regulating output level dB?V 78
CNR / CSO / CTB ?dB >49 / >60 / >60
Optical?input / output
Number of ports 1x COM bidirectional
1x GPON bidirectional
Wavelengths nm GPON: 1310 & 1490
COM: 1310 & 1490
COM: 1550
Maximum optical input power dBm 3
Optical input power dBm -10 … +2
Optical return losses dB >40
Optical connectors 1x SC/APC (COM)
1x FC/PC (GPON)
Type of optical device InGaAs pin photodiode
General
Supply voltage V= 12
Internal device consumption mA 80
Output DC pass per output mA 450
Operating temperature ?C -5 … +45
Protection index IP 30
Application example -
Add to cartDesigned to work as a pass-through and diverting element for optical fibre cables, it can handle up to 24 splices on 2 trays. Commonly used in FTTH projects, inside the buildings (usually in the secondary enclosure).?Televes 231302
-
Add to cartDesigned to work as a final element for optical fibre cables. Commonly used in FTTH projects, inside the buildings (usually in the secondary enclosure). Can house up to 8 splices.?Televes 231310
-
Add to cartDesigned to act as a distribution point for fiber optic hoses. It is usual to use it in FTTH or FTTR projects, facilitating the interconnection between the own network and the operator’s network (typical installation in the RITI). It allows to install several records jointly, maintaining the possibility of interconnection between them. Up to 48 female-female adapters. Televes 233003
-
Add to cartDesigned to work as a pass-through and diverting element for optical fiber cables. Commonly used in FTTH projects, inside the buildings (usually in the secondary enclosure). Its ultra-compact and discreet design makes it easy to install without disturbing the aesthetics of the site. Can house up to 12 fibres.
