1.6mm Electric Fence Undergate Cable 100m – Kenya
KSh4,000.00

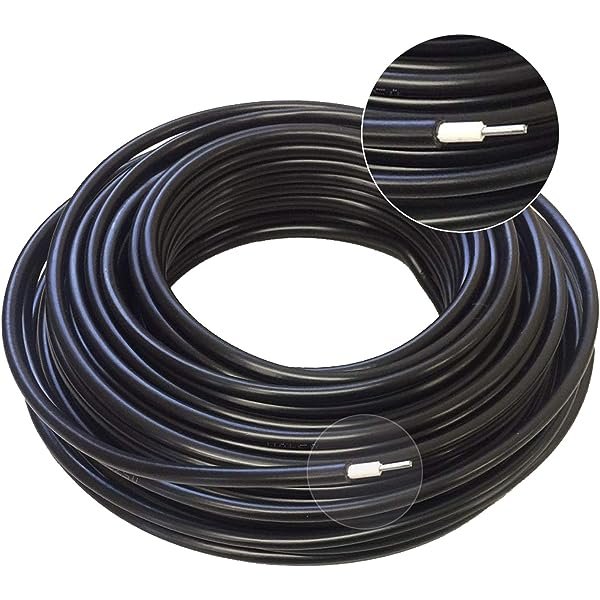

1.6mm Electric Fence Undergate Cable 100m
This U-Series high voltage insulated electric fencing cable is used to carry the voltage from the energizer to the electric fence in a safe and insulated manner. It can also be used to carry the voltage under gates to the next section of fence. This underground cable is suitable for use with galvanised wires, aluminium wires and all poly wires, poly ropes and poly tapes.
1.6mm Electric Fence Undergate Cable 100m specifications
**
Material
Solid heavy galvanised inner conductor
Roll size
25m
50m
100m
200m
500m
Colour
Black
Diameter
1.6mm
2.5mm
Resistance
1.6mm ** 98 Ohms/km
2.5mm ** 36 Ohms/km
**
1.6mm Electric Fence Undergate Cable 100m
This U-Series high voltage insulated electric fencing cable is used to carry the voltage from the energizer to the electric fence in a safe and insulated manner. It can also be used to carry the voltage under gates to the next section of fence. This underground cable is suitable for use with galvanised wires, aluminium wires and all poly wires, poly ropes and poly tapes.
1.6mm Electric Fence Undergate Cable 100m specifications
?
Material
Solid heavy galvanised inner conductor
Roll size
25m
50m
100m
200m
500m
Colour
Black
Diameter
1.6mm
2.5mm
Resistance
1.6mm ? 98 Ohms/km
2.5mm ? 36 Ohms/km
?
Related products
-
1.5mm twin flat electrical cable – Kenya
KSh6,000.00Add to cart1.5mm twin flat electrical cable**
1.5mm twin flat electrical cable is a quality, well constructed product which is easily stripped and worked with.**General purpose T&E cable, mainly used in house wiring, power and lighting circuits, such as**fluorescent lighting**and**Office & Shop Lighting
1.5mm twin flat electrical cable specification
Conductor Size: 1.5mm
Nominal Diameter: 8.8mmx4.5mm
Cores: 2+E
Core Colours: Brown
Conductor Material: Grey Harmonised PVC
Conductor Material: Solid Copper
Voltage: <300/500V Max Load: 18A Operable Temperature: 0**C ** 70**C ** Conforms to BS6004 and BASEC approved. twin flat 1.5mm** electrical cable -
1.0mm twin with earth electrical cable – Kenya
KSh5,000.00Add to cart1.0mm twin with earth electrical cable**
1.0mm twin with earth electrical cable plain annealed copper conductor with PVC insulated cores and PVC sheath.
Key Features
Plain annealed
Copper conductor
PVC insulatedTechnical Data Sheath colour : Grey Cable size : 1.00mm** Stranding : 1 / 1.13mm** Cores : 2 Core & Earth Overall diameter : 4.10mm** x 8.65mm** Flat cable Temperature limits : -15**C ** +70**C Standards 300 / 500V to BS6004 Flame propagation to BS EN50265 BASEC Approved
Colour Grey
Size 1.0mm x 100m
Length 100m Reel
Weight 7.12Kg
Brand Builder Depot
Barcode 5060146771672
EDP code 1TE
Pack Full Drum
Cores 2 Core + Earth
**
**
** -
Add to cartDescription
Sheep Energiser Meps
Stored Energy: 9J
Output energy 500 ohm: 6J,
Output voltage max: 10kv
Output voltage min: 5kv
Mains Power: 220 vac
Pulse Period: 1-1.5 s
Pluse Width: 0.3 ms -
1.0mm twin flat electrical cable – Kenya
KSh4,000.00Add to cart1.0mm twin flat electrical cable**
1.0mm twin flat electrical cable also known as FTE (flat twin and earth) the live and neutral conductors are individually insulated, and the Circuit Protective Conductor (CPC) or earth, is bare. Not suitable for unprotected use outside as the outer sheath materials are vulnerable to attack by UV although protective paint can provide some UV protection. **
-
Add to cartDruid 15 LCD Electric Fence Energizer 5 Joule
Druid 15 LCD Electric Fence Energizer 5 Joule LCD display in the Druid range makes information on the status and performance of the energizer quick and easy to read. Druid 15 LCD Electric Fence Energizer Using the Adaptive Power Technology (APT) pioneered by Nemtek, these energizers offer a unique technology to detect how much power a fence can accept and handle before it starts to arc and waste energy.
Druid 15 LCD Electric Fence Energizer maximizes the power on the fence and minimises false alarms. Druid 18LCD The LCD display in the Druid range makes information on the status and performance of the energizer quick and easy to read. Using the Adaptive Power Technology (APT) pioneered by Nemtek. Druid 15 LCD Electric Fence Energizer offers a unique technology to detect how much power a fence can accept and handle before it starts to arc and waste energy. This maximizes the power on the fence and minimizes false alarms.
Druid 18LCD energizer offers the following:7.6J output deal choice for long-distance series electric fencing systems that require monitoringBuilt-in alarm monitors tampering or faults on the high voltage and earth.
Druid 15 LCD Electric Fence Energizer fence wire connectable to armed response radio or GSM module lighting and power surge protectionIntelligent power saving to extend battery life easy-to-use tag included for controlling the energized walk test mode for easy fence testing the LCD background colour changes to easily identify the fence condition.
Druid 15 LCD Electric Fence Energizer powered by 230V mains and includes a built-in battery for back up powerBuilt-in gate alarm inputs to monitor if the gate is open or closed Optional keypad for controlling and programming the energizer. This allows the user to control the energizer remotely, with up to two keypads
15 LCD Electric Fence Energizer 5 Joule specifications
• 4.6 Joule output energy (single zone)
• Robust and flexible design for home and commercial security
• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
• Connectable to armed response radio or GSM module
• Lightning and power surge protection
• Intelligent power saving to extend battery life
• Easy-to-use tag included for controlling the energizer
• Walk test mode for easy fence testing,• The LCD background colour changes to easily identify the fence condition
• Powered by 240V mains and includes built-in battery for back-up power
• Built-in gate alarm input to monitor if the gate is open or closed
• Optional keypad for controlling and programming the energizer. This allows the user to control the energizer remotely, with up to two keypadsSpecifications
Enclosure size: L285 x W212 x D120
Weight excluding battery (7AH): 3.1kg
Weight including battery (7AH): 5.3kg
IP rating: IPx4
Operating temperatures: -10°C to 50°C
Operating humidity: < 80% non-condensing Electrical supply voltage: 240V Typical power consumption (normal operating conditions): 18VA Standby time (fully charged battery): 24hrs Energy output 500 Ohms load: 4.6 Joule Open circuit voltage: 9 000V
