1310nm optical transmitter SC / APC 10dBm

Name: 1310nm optical transmitter SC / APC 10dBm | +254720548999
SKU: TEL233311

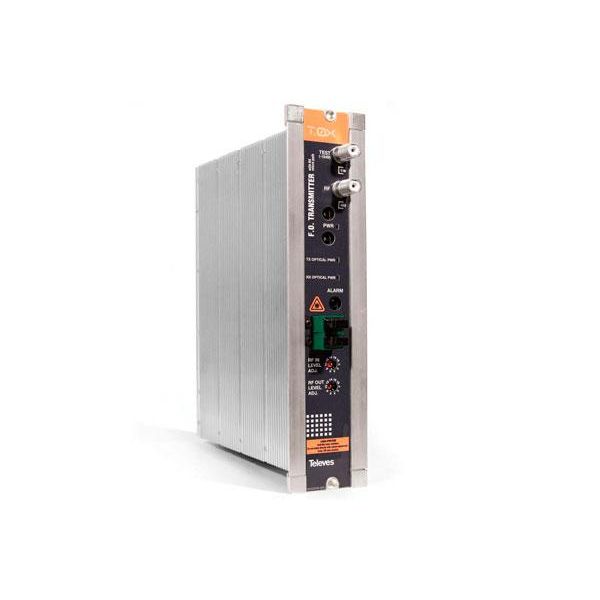

Televes 1310nm ”SC / APC” 10dBM 233311 Transmitter

Optical transmitter with radio frequency input compatible with SMATV. Different power outputs, reaching a maximum of 10 dbm.

With this equipment it is possible to send the television signal, both satellite and terrestrial, through optical fiber. The advantages of the optical fiber are mainly its insignificant attenuations, which allows to send the signal over longer distances, and also its immunity against electrical interference.

Radio frequency input level control for the adjustment of quality parameters, control signals for monitoring the optical output signal and relay for the implementation of an optical power drop alarm.

What technical specifications does the Televes 233311 optical transmitter have?
Referencia 233311
?
? ENTRADA ?
? RF Canal directo ?Ancho de banda MHz ?54…2150

?Nivel m?ximo de entrada para que CSO?y CTB >= 60dB?(1)

MATV dB?V 87
SAT BIS 80
?Ruido equivalente de entrada a 850MHz dBm/Hz -150
?Ruido equivalente de entrada a 2GHz -146
?Atenuaci?n de entrada dB 0 – 18
?Perdidas de retorno ? 10
?Impedancia ? 75
?F.O. Canal Retorno ?Longitud de onda nm –
?Ancho de banda de detecci?n MHz –
?Potencia ?ptica m?xima recibida mW/dBm –
?Conector ?ptico –
?
?Salida ?F.O. Canal directo ?Longitud de onda nm 1310
?Potencia ?ptica m?xima emitida mW/dBm 10/10
?Conector ?ptico SC/APC
?RF Canal Retorno ?Ancho de banda de detecci?n MHz –
?Nivel m?ximo de salida DIN45004B dB?V –
?Margen de regulaci?n dB –
?Perdidas de retorno –
?Impedancia ? –
?
?General ?Alimentaci?n Vdc 12 – 24
?Consumo a 24Vdc mA 140
??ndice de protecci?n IP 20
?Dimensiones (Larg x Alt x Prof) mm 50 x 217 x 175
