Connector F of compression 3802 from Televes
Connector F of compression 3802 from Televes

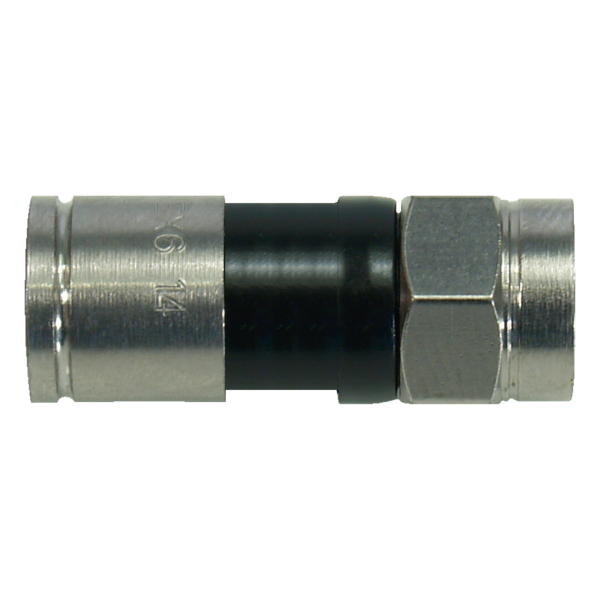

Televes connector 3802 is a type F compression connector with good shielding against interference.
This connector has a firm and robust connection with a straight format.
Its installation is done with compression tool.
Professional connector F with compression mounting system
What technical characteristics does the 3802 connector have?
Good shielding against interference
Firm and robust connection
Straight format
Installation with compression tool
What benefits does a compression connector have?
When the installation is done through a compression connector, it is completely fixed to the coaxial cable, that is, to remove it, the cable should be cut and the connectorization of a new connector re-done.
They are connectors that assure us the correct connection of the cable for always, without fear that it can be released.
