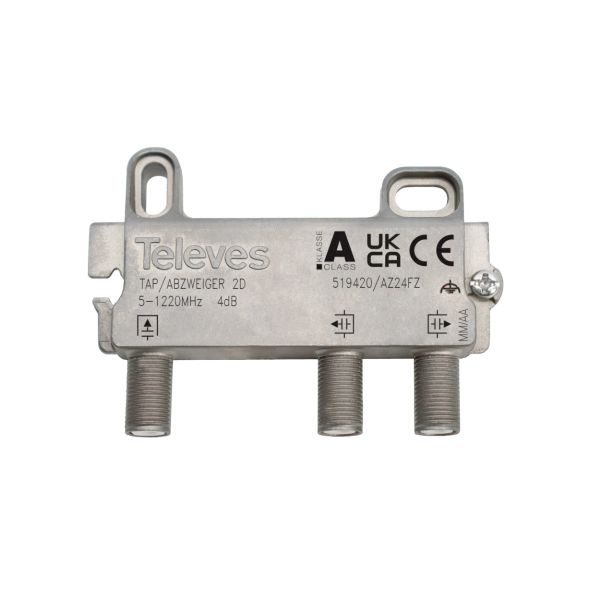

2 Output Splitter CATV Terminal F Connector 4dB from Televes
Shunt 2 Outputs CATV Terminal Connector F 4dB of Televes
2-output shunt type F and 4dB attenuation for terrestrial signals (5-1220 MHz), compatible with Docsis 3.1 coaxial cable data technology. It does not include DC power pass-through.
This shunt is used in indoor installations, for wall mounting, rack mounting or standard DIN rail mounting.
It has a high efficiency, comes with a chassis made of zamak, which provides a great shielding. It is compatible with DOCSIS 3.1, which is an international standard that defines the requirements needed to achieve the highest possible speed in data transmission over cable networks.
This shunt is not suitable for satellite signal distribution.
Frequency range MHz 5 … 1220
Number of derivations ? 2
Bypass losses dB
4,5
Rejection between derivation dB
> 20
Connectors ? “F” hembra
