Mast Amplifier 4in (FM-BIII/DAB-UHF-UHF) 36dB LTE 5G

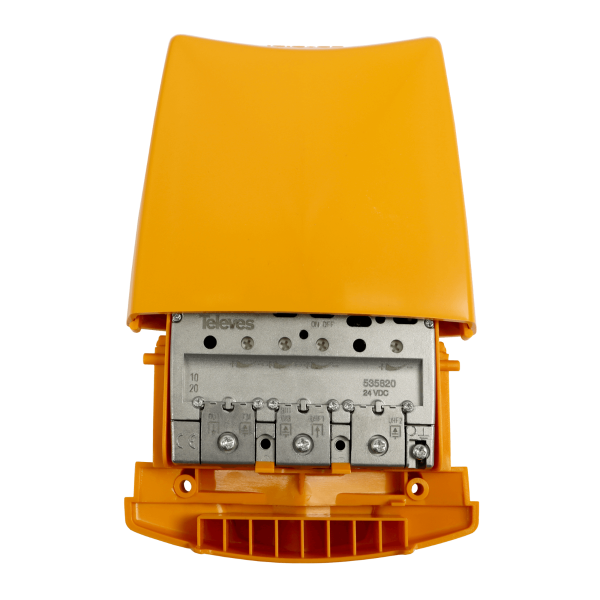

Mast Amplifier 4 Inputs: FM-BIII/DAB-UHF-UHF 36dB LTE 5G Televes 535820
Mast amplifier with 4 terrestrial inputs: FM-BIII/DAB-UHF-UHF. Adapted to the 2nd Digital Dividend with integrated 5G filter. It works at 24Vdc and allows the power pass to the UHF1 input to feed another preamp or an active antenna.
External amplifier with high gain (36dB) and high output level (113dB**V). Its EasyF connection system simplifies installation by not using connectors on the cable, but it is connected directly stripped.
The amplifier is designed to be mounted on the antenna mast, as it has an ABS plastic case that protects it from the elements. The equipment includes a plastic flange for fixing to the mast.
**
Mast Amplifier 4 Inputs (FM-BIII/DAB-UHF-UHF) LTE 5G with 36dB of Gain and 113dB?V of Output
What technical specifications does the Televes 535820 Mast Amplifier have?
Bands FM BIII/DAB UHF 1 UHF 2
Frequency margin MHz 88 … 108 174 … 254 470 … 694
Gain dB 15 32 36
Gain adjustment range dB 0 … 20 0 … 20 0 … 20
Max.output level dB?V EN 50083 (-35dB) 122 122 123
DIN 45004B 115 115 116
EN 50083 (-60dB) 112 112 113
Noise figure dB — 4 9
Output level regulation margin V /mA 24 / 80
Max current through inputs OFF mA –
ON – – 45 –
Protection Level IP 23
Temperature operat. limits ?C -5 … +45
