Description

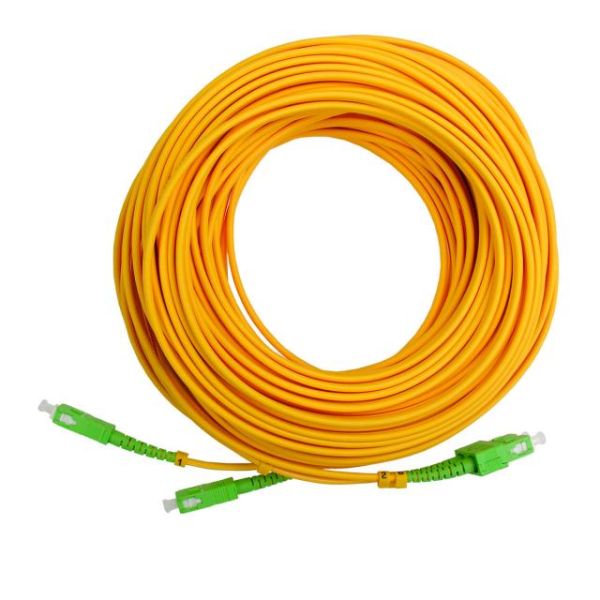

The 232643 fiber optic hose provides a low level of attenuation and high reliability.
What technical characteristics does the hose 232643 have?
Connectors mechanically phase-shifted at one end to facilitate passage through pipelines.
They have blockers and fasteners to hold the fibers together.
Fiber identifiers are included.
Made with ITU-T G.657A2 LSFH fiber, they provide low levels of attenuation and high reliability.
What technical specifications does the hose 232643 have?
?Fibra ?Tipo Monomodo ITU-T G.657A2
?Conectores ?pticos ?Tipo SC/APC
?Cubierta ?Tipo LSFH
?Tensi?n m?xima en instalaci?n por fibra ?N 1000
?Tensi?n m?xima permanente por fibra ?N 500
?Temperatura de funcionamiento ??C -20 … +70
?Atenuaci?n m?xima ?dB 0,8 (1310, 1490, 1550 nm), incluyendo conectores
?P?rdidas de inserci?n dB < 0,5 (por bra)
?P?rdidas de retorno dB > 60 (por bra)
?Radio m?nimo de curvatura ?mm 15
?Di?metro exterior mm 3
