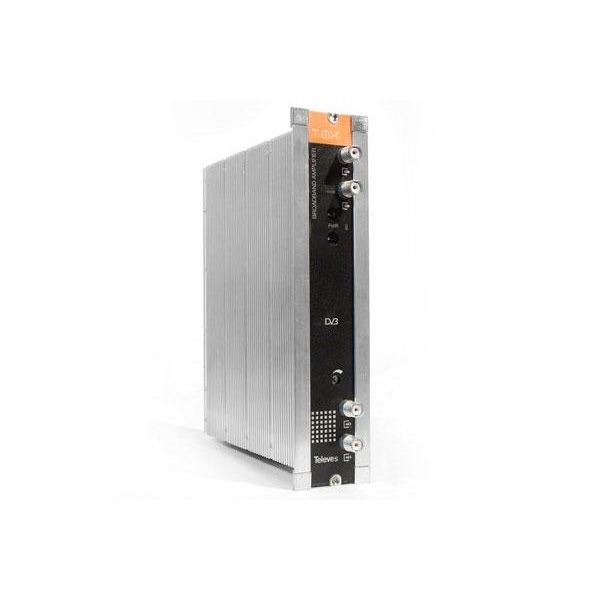

T0X whole band central (46-862 MHz) 44dB Televes 5575
Central T0X whole band (46-862 MHz) G. 44 dB, Vs 120 dBuV. Ref. 5575 Televes.
It has two signal input connectors to allow the mix of channels provided by two systems. If you use only one of the inputs, we recommend charging the unused input with a 75 ohm load, ref 4061. It has an output connector and output Test (-30dB) located on the top of the front panel. Power is 24V, through a hose as is used feeding the other system modules.
