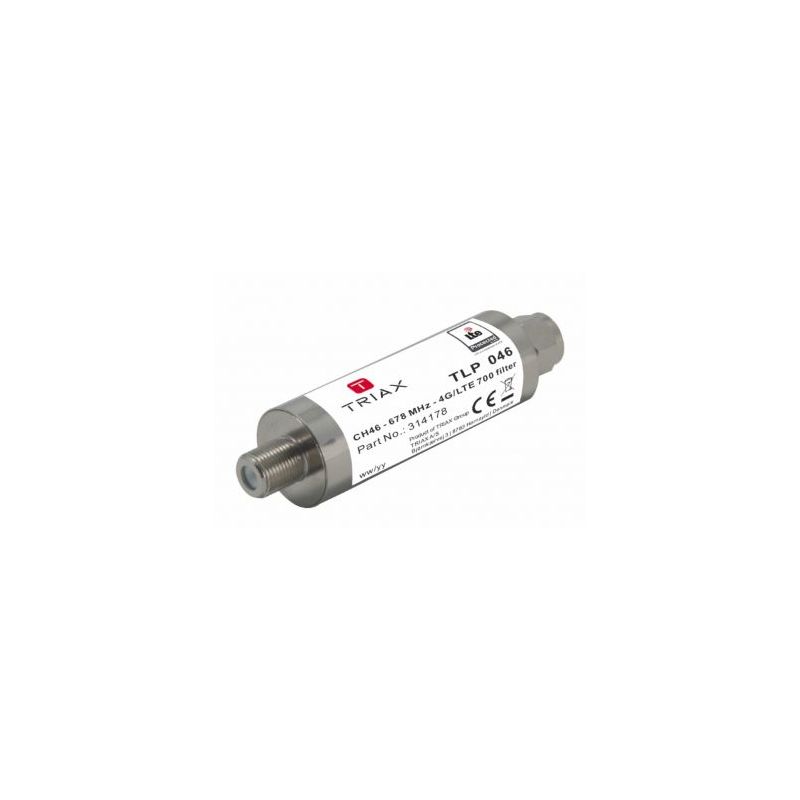

700MHz LTE TLP filter CH46 Triax
KSh1,976.00
LTE filters prevent 4G mobile services from interfering with terrestrial TV signals
Specifications
ORDER INFORMATION
EAN Number 5702663141780
CHARACTERISTICS
Type LP filter
FREQUENCY
Input 1 – frequency 5…678 MHz
LTE protection 700
LOSS
Input 1 – through loss 1.0 dB
Input 1 – Rejection > 50.0 dB
OPERATIONAL
DC Passthrough Yes (30VDC / 1A)
