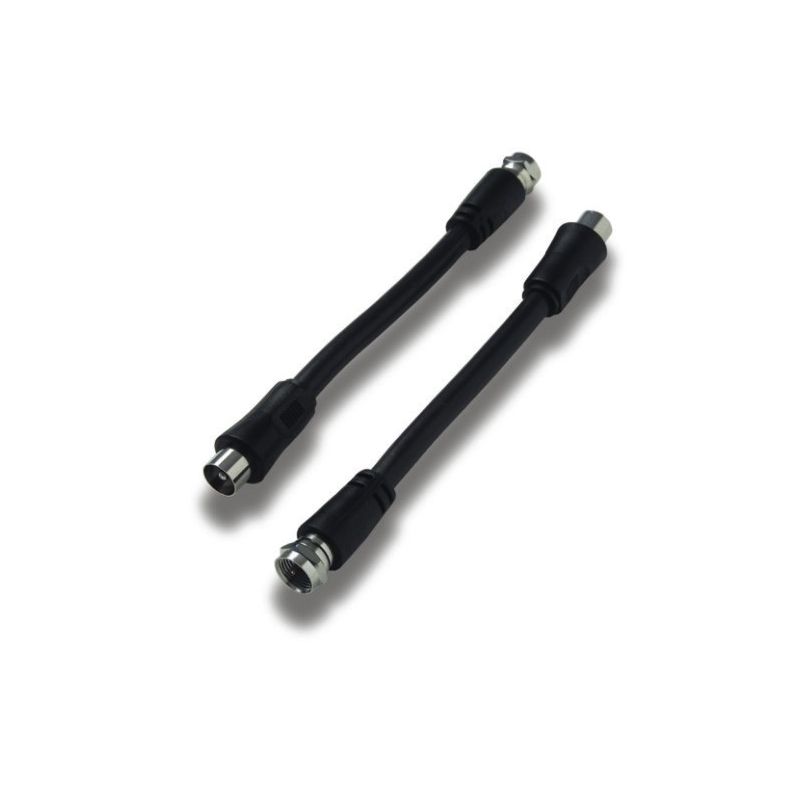

Alcad PZ-020 ”f” male iec ?9,52mm plug bridge
KSh218.00
Alcad PZ-020 – Serie 905: ”f” male iec **9,52mm plug bridge.
Multiplexing and diplexing bridge with F-type male connector and IEC male **9.52 mm connector for combining signals from all modules or for distributing the signal from one antenna to several modules. Can be used to add a module to or to replace a module with IEC connector using modules with F-type connector.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Technical specifications
Related products
-
Alcad SP-245 Frame d47 for 2 psu and 8 modules
KSh5,870.00Add to cartAlcad SP-245 – Serie 912: Frame d47 for 2 psu and 8 modules.
Support frame for 912-series headends with redundant power supplies. It can hold up to 2 power supplies, one amplifier and 7 modules, or 2 power supplies and 8 modules. There is a 47 mm distance between modules to allow for better heat disipation.
Downloads
Technical specification
Technical specification
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
-
Alcad TMS-214 4xdvb-s/s2/s2x to 2xdvb-t/c transmod, ci
KSh313,306.00Add to cartAlcad TMS-214 – Serie 912: 4xdvb-s/s2/s2x to 2xdvb-t/c transmod, ci.
Himalaya transmodulator of DVB-S/S2 satellite digital television services to DVB-T or DVB-C. Each module selects services from four DVB-S/S2 satellite transponders and includes them in two DVB-T or DVB-C channels. The demodulators are Multistream compatible. Can be configured using a web browser in a computer conected via ethernet cable.
Equipped with a Common Interface slot for insertion of the CAM and the subscriber’s card for encripted services.
Downloads
Technical specification
Technical specification
Manuals
TMS-214 HN pdf 808.48 KB
TMS-214 Manual pdf 3.79 MB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – TMS-204 TMS-214 pdf 70.78 KB
Firmware
Firmware TMS-214 v1.07 zip 28.46 MB
Other documents
TECHNICAL INFORMATION pdf 325.27 KB
Technical specifications
-
Alcad FA-512 Power supply 96 w (90-260 vac) himalaya
KSh81,896.00Add to cartAlcad FA-512 – Serie 912: Power supply 96 w (90-260 vac) himalaya.
Switching power supply for 912-TM himalaya transmodulateurs, which permits the installation of a PA-740 broadband amplifier and different modules on the support frame. An additional power supply can be added to the headend so that it will have a redundant power supply with load balance. Power supply with a flat cable of 10 lines at 12V.
Downloads
Technical specification
Technical specification
Manuals
FA-512 Manual pdf 2.11 MB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – FA-512 pdf 61.42 KB
Technical specifications
-
Add to cartModular amplifier allowing the adjustment of individual UHF channels (DTT), with very high rejection of adjacent channels (>50 dB). 470-862MHz G55dB Vs125dB**V.**Perfect format for headend mounting, with additional T12-series amplifiers.**Televes 509812
-
Alcad TM-112 2xdvb-s/s2/t/t2 to dvb-t/c transmod ci
KSh259,478.00Add to cartAlcad TM-112 – Serie 912: 2xdvb-s/s2/t/t2 to dvb-t/c transmod ci.
himalaya transmodulator of DVB-S/S2 satellite digital television services or DVB-T/T2 terrestrial digital television to DVB-T or DVB-C. Each module selects services from two DVB-S/S2 satellite transponders or DVB-T/T2 terrestrial channels and includes them in a DVB-T or DVB-C channel. Can be configured using a web browser in a computer conected via ethernet cable.
Equipped with a Common Interface slot for insertion of the CAM and the subscriber’s card for encripted services. Can be configured using a web browser in a computer conected via ethernet cable.
Downloads
Technical specification
Technical specification
Manuals
TM-112 Manual pdf 2.85 MB
Catalogues
CATALOGUE_ALCAD_EN_MULTIMEDIA_TV pdf 5.42 MB
Certificates
CE Declaration – 912-TM pdf 61.42 KB
Firmware
Firmware TM-112 v3.06 zip 26.51 MB
Other documents
TECHNICAL INFORMATION pdf 325.27 KB
Technical specifications
