Description

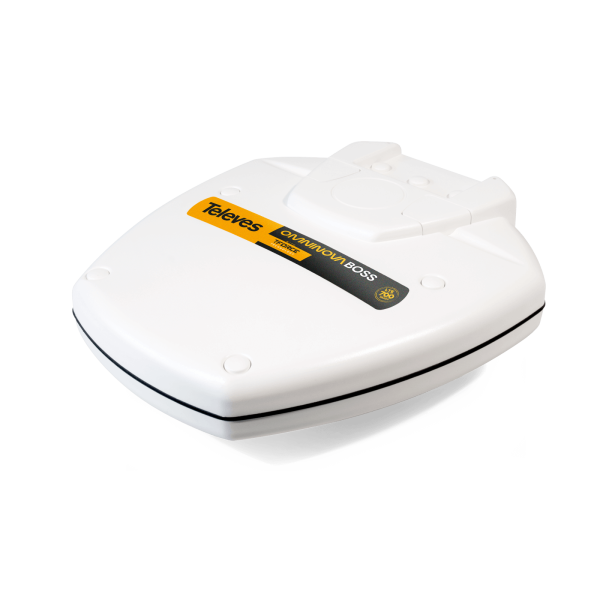

Televes omnidirectional DTT antenna for Caravans and Boats with 25dB of gain and integrated LTE 5G filter
What does Televes UHF Omninova 144422 antenna include?
PicoKom 12V power supply (Ref. 579401)
Current injector for connection to the battery (Ref. 7450)
Straight bracket for antenna installation
Connector F
Screws with mounting key for anchoring to the mast
What are the main characteristics of Televes’ Omninova 144422 antenna?
High dynamic range: It allows high-quality TV reception in a wide variety of critical situations, from areas where signals are very weak to installations with high reception levels
A more stable reception: supports signal variations or fading without any impact on the TV installation
Weather resistant: The radome is highly resistant to salinity, humidity and other adverse weather conditions (IP 53).
The base was designed to protect and hide the coaxial cable inside the mast or the bracket.
360? reception for multiple bands: Pointing is not required: BI, FM, BIII, and UHF.
Low power consumption in intelligent mode
LTE-Ready: equipped with LTE filters to avoid mobile phone signals caused by the use of 5G/4G devices in the environment
What technical specifications does the Televes Omninova 144422 antenna have?
Working band BI FM BIII UHF
?Frequency range LTE700 MHz 54 – 88 88 – 108 174 – 230 470 – 790
?Polarisation Horizontal
?BOSS Mode OFF ON OFF ON OFF ON OFF ON
?Maximum gain dBi -10 17* -4 16* -3 25* -4 25*
?Output level dB?V — Auto* — Auto* — Auto* — Auto*
?Powering Vdc — 12-24 — 12-24 — 12-24 — 12-24
?Maximum current mA — 95 — 95 — 95 — 95
?Protection index IP 53
?Wind load N 74,88 (@ 130 km/h)
102,96 (@ 150 km/h)
