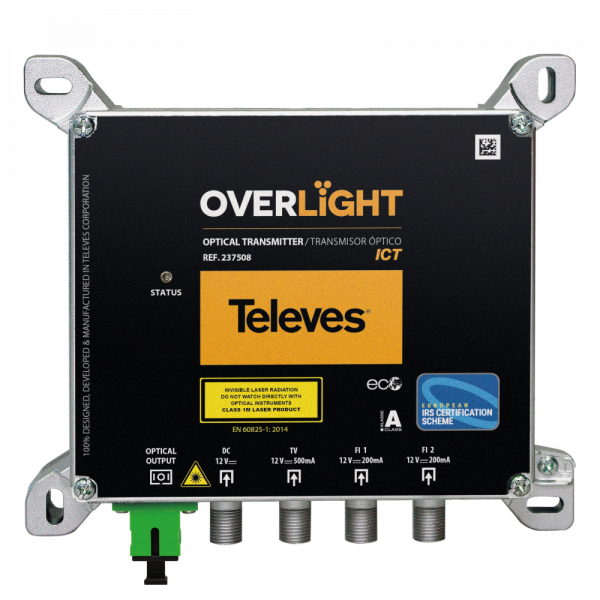

Indoor Overlight Optical Transmitter CWDM SC/APC 1550nm/9dB Televes
Overlight Optical Transmitter for Indoor CWDM SC/APC 1550nm/9dB from Televes
The Overlight series is characterized by being a satellite and terrestrial distribution series over fiber optics. So you will be able to group all the services into a single optical fiber, achieving installations with fewer antennas and devices in the installation, making the installer’s work much easier.
The transmitter will receive the LNB signal, both satellite and terrestrial, and send it through a single fiber with SC/APC connector, being able to distribute it to up to 64 users.
Its optimized electronic design gives this transmitter an optical power output of 9dBmW at a wavelength of 1550nm. Its chassis is made of zamak and can be installed on either a wall or a mast.
It allows amplification and is capable of preserving signal quality from start to finish, thanks to its low losses and optimized electronic behavior.
Technical Specifications of the Televes CWDM SC/APC 1550nm/9dB Indoor Overlight Optical Transmitter
?
Inputs/Bands
?
TERR
FI 1
FI 2
Frequency range
MHz
47 … 698
950 … 2200
950 … 2200
Entry level
dB?V
83 … 95
70 … 85
70 … 85
Number of MUX for Entry Level
?
24
30
30
MUX Bandwidth for Entry Level
MHz
8
40
40
Input supply voltage
Vdc
11,7 … 17,7
11,7 … 17,7
11,7 … 17,7
Max current step
mA
500
500
500
Max current step total tickets
mA
1000
Impedance
?
75
Laser
?
MQW-DFB uncooled
Wavelength
nm
1550
Optical output power
dBm
10
RF Connectors
?
“F” hembra
Optical connectors
?
SC/APC
Supply voltage
Vdc
12 … 18
Max power consumption
W
4,2
current consumption
mA
< 350 Operating temperature ?C -5 ... 45 Source input voltage Vac 100 ... 240 Max input current of the source mA 600 Source output voltage Vdc 12 Max output current of the source A 1,5
