Antenna UHF DAT BOSS 42dB (C21-48) LTE 5G (bag)
DTT-UHF DAT BOSS LTE 5G Antenna in Bag

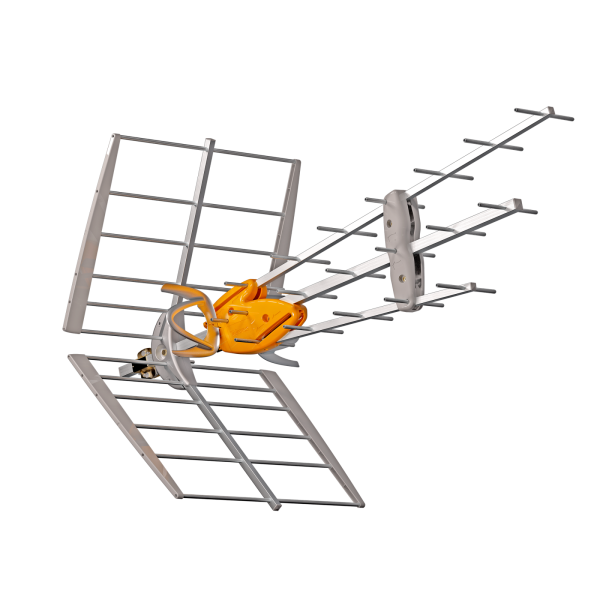

UHF DAT BOSS Televes 149922 antenna with 42dB gain. Adapted to the 2nd Digital Dividend for the reception of channels 21 to 48 (470-694 Mhz), thanks to the LTE 5G filter that integrates.
Your BOSS system offers intelligent automatic gain when the antenna is powered. The antenna constantly regulates the gain to be able to receive a quality TV both in conditions of very low signal and high reception levels, which gives it the ability to withstand signal variations or fading without affecting the final result.
Its TForce technology provides BOSS with a significant increase in DTT coverage up to 27% compared to previous models.
This antenna is powered at 12-24V and does not include the power supply. We recommend the following:
Power Supply 130mA 24Vdc 2 outputs
Power Supply 220mA 12Vdc 1 output
UHF-TDT antenna activates Televes DAT BOSS with 42dB gain and integrated 5G LTE filter. Supplied in bag for professionals.
What are the main features of the Televes UHF DAT BOSS 149922 antenna?
High dynamic range: it allows the reception of high-quality TV in a variety of critical situations, from areas where signals are very weak to installations with high signal levels
Expanded DTT coverage area: up to 27% higher than previous models
More stable signal reception: it supports signal variations or fading with no effect on the TV installation
Optimal C/N: thanks to a noise figure of only 1.2dB that enhances the received signal quality
Very high gain: TForce technology provides BOSS with an increase in gain of up to 13dB
The DAT design, based on 3 Yagi antennas with asymmetric directors, provides great directivity as well as an optimal anti-echo radiation pattern
Special double-U dipole: it’s open/close format provides optimal frequency response flatness
A fully shielded switch box protects the BOSS system from impulsive noise; grounded for full protection against electrical discharge
Manufactured in aluminium (stainless) for a long service life
Fully automated manufacturing in Europe under the most stringent quality controls: a synonym of high reliability
Two work mode options: Intelligent low power consumption mode or passive mode (lack of power supply).
What technical specifications does the Televes UHF DAT BOSS 149922 antenna have?
Working band MHz 470 – 694 (C.21 – C.48)
BOSS Mode OFF
(passive) ON
(active)
Gain dBi 17 42 max.*
Output level — Auto*
Noise figure dB — 1,2 (typ)
Signal level of use (recommended) dB?V >75 <75
Power supply V 0 12-24
Consumption mA -- 40 max.
Beamwidth ? 30
F/B ratio dB >20
Wind load N 120 (@ 130 Km/h)
165 (@ 150 Km/h)
Mast diameter mm 20…50
* The gain is automatically adjusted according to the level of output.
