Taps of 2 CATV Outputs Connector F 23dB of Televes

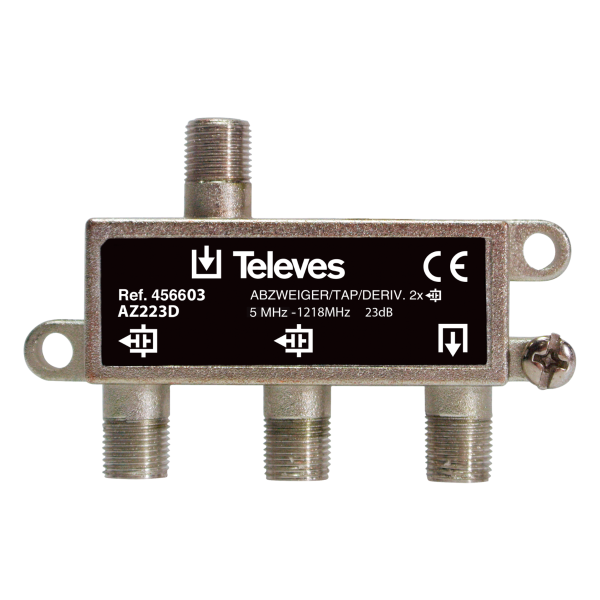

Derivative of 2 Outputs Connector F 23dB 456603 of Televes
Tap with 2 type F outputs and 23dB attenuation for terrestrial signals (5-1220**MHz), compatible with Docsis 3.1 coaxial cable data technology. It includes a bidirectional DC current pass between the input and the pass output.
Due to its high attenuation, this shunt is designed to be installed on the highest floors of a building. It is for indoor installation, but it can be installed outdoors as long as it is inside a Televes 4163 box.
This shunt is not suitable for satellite signal distribution.
Technical Specifications of the 2 Output Tap Connector F 23dB 456603 from Televes
?
number of outputs ? 2
frequency range MHz
5 … 1220
step losses dB
1
Shunt losses dB
23
Rejection between referral dB
> 20
Max Current A 1
Step DC ? Input.?Output.
?
