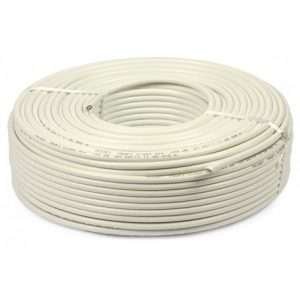

Astel RG6 100 Meters Coaxial Cable – Kenya
KSh2,700.00
Astel RG6 100 Meters Coaxial Cable Mtech
Astel RG6 100 Meters Coaxial Cable are used in systems which require high shielding from inductive sources and GSM-LTE signals. Astel RG6 100 Meters Coaxial Cable LTE signals are in the same frequency band as Satellite IF signals and thus IF Multiswitch distribution is highly prone to LTE signals disturbance. Astel has introduced Trishield and Quadshield cables to provide Class A+ Shielding (-120 dB RFI) shielding. Astel RG6 100 Meters Coaxial Cable comply with Class A Shielding Standards. LSZH models comply with Low Smoke Zero Halogen and ROHS Standards European Directive 2011/65/EU. Astel RG6 100 Meters Coaxial Cable LSZH jackets emits very low smoke and very low hazardous constituents in the event of fire.
Astel RG6 100 Meters Coaxial Cable specifications
Model Product
RG-6 70AL
RG-6 90AL
CS697BV
Inner Conductor
CCS
CCS
CCS
Dielectric
Foam PE
Foam PE
Foam PE
1st Shield
Bonded AP Foil
Bonded AP Foil
Bonded AP Foil
2nd Shield
AL-MG Braiding
AL-MG Braiding
AL-MG Braiding
Braid Coverage
70% Coverage
95% Coverage
97% Coverage
3rd Shielding
NA
NA
NA
4th Shielding
NA
NA
NA
Jacket
PVC
PVC
PVC
ROHS Compliance
NA
NA
NA
Construction
Center Conductor Diameter
1.02 mm
1.02 mm
1.02 mm
Foam PE
4.80 mm
4.57 mm
4.57 mm
1st Shield
4.95 mm
4.73 mm
4.73 mm
2nd Shield
5.30 mm
5.32 mm
5.32 mm
3rd Shield
NA
NA
NA
4th Shielding
NA
NA
NA
Jacket Material
PVC
PVC
PVC
Jacket
6.85 mm
6.91 mm
6.91 mm
Jelly (For Corrosion Protection)
NO
NO
NO
Electric Specifications
Nominal DCR @ 20 deg C
Inner Conductor
117 ohms/KM
102 ohms/KM
102 ohms/KM
Outer Conductor
62 ohms/KM
27 ohms/KM
26 ohms/KM
Nominal Capacitance
53.0 pf
53.0 pf
53.0 pf
Impedance
75±3 ohms
75±3 ohms
75±3 ohms
Return Loss
**18 dB
**20 dB
**22 dB
Propagation Velocity Ratio
82%
82%
82%
Insulation Resistance
**2000M**
**2000M**
**2000M**
Packing
100Y CTN Size QTY-6 pcs/CTN
28x28x58 cms
28x28x58 cms
28x28x58 cms
100Y CTN-Weight
21 kgs
23 kgs
NA
305M Reel Size
32x30x30 cms
32x30x30 cms
32x30x30
305M Reel Weight
12/13 kgs
13/14 kgs
14/15 kgs
305M Box Size
NA
49x49x27 cms
49x49x27 cms
305M Box Weight
NA
14/15 kgs
15/16 Kgs
Astel RG6 100 Meters Coaxial Cable Mtech
