BCS BCS-IP8/E-S PoE Power Supply Set for IP Cameras, Internal Enclosure, up to 9 Receivers

Name: BCS BCS-IP8/E-S PoE Power Supply Set for IP Cameras, Internal Enclosure, up to 9 Receivers | +254720548999
SKU: BCS-B-NVR1601(2.0)
Price: 27146.78 KES
Availability: InStock

KSh27,146.78

>
Product Line: BCS POWER

>
PoE Ports: 9×RJ45 100Mbps

>
Uplink Ports: 1×RJ45 100Mbps

>
IEEE Standard: 802.3af / 802.3at / PoE PASSIVE

>
Standard Mode Range: 100m

>
Extend Mode Range: LAN_1-LAN_4 280m 10Mbps

>
Power Supply: 96W

>
Input Voltage: 190-260 VAC, 50 Hz

>
Output Voltage: 48 VDC +/- 2%

>
Operating Conditions: -10°C~+40°C max 90% RH

>
Weight: 1.52 kg

>
Protection Rating: IP20

>
Enclosure: BCS-E, 0.8 mm steel, powder-coated white

>
Dimensions (W×D×H): 250×200×85mm

The BCS
BCS-IP8/E-S is a sophisticated PoE power supply kit designed specifically for
IP surveillance cameras. This product addresses the challenge of centralized
power solutions for monitoring systems, allowing for seamless integration
with PoE 802.3at/af and PoE PASSIVE devices. Its exceptional LONG RANGE mode
enhances transmission distance up to 280 meters using standard UTP network
cable, outperforming many similar products in the market, making it ideal for
expansive monitoring setups.

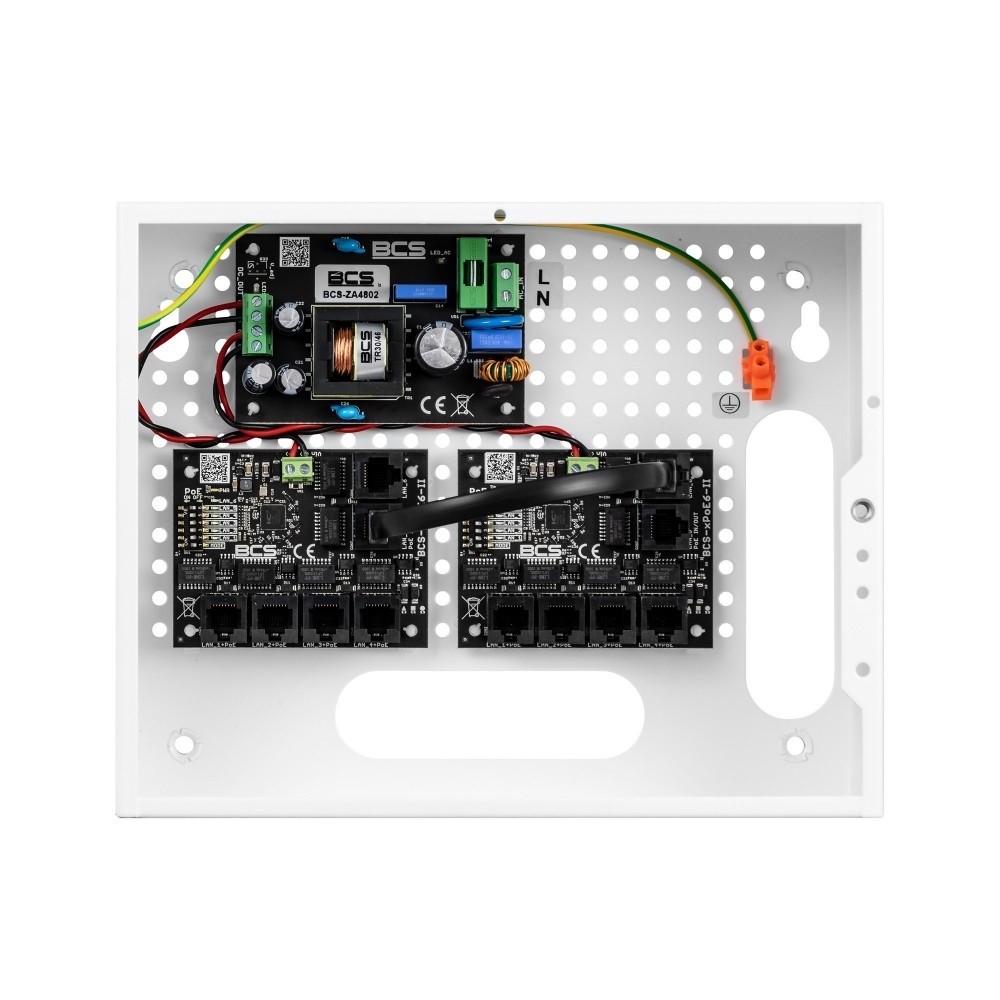

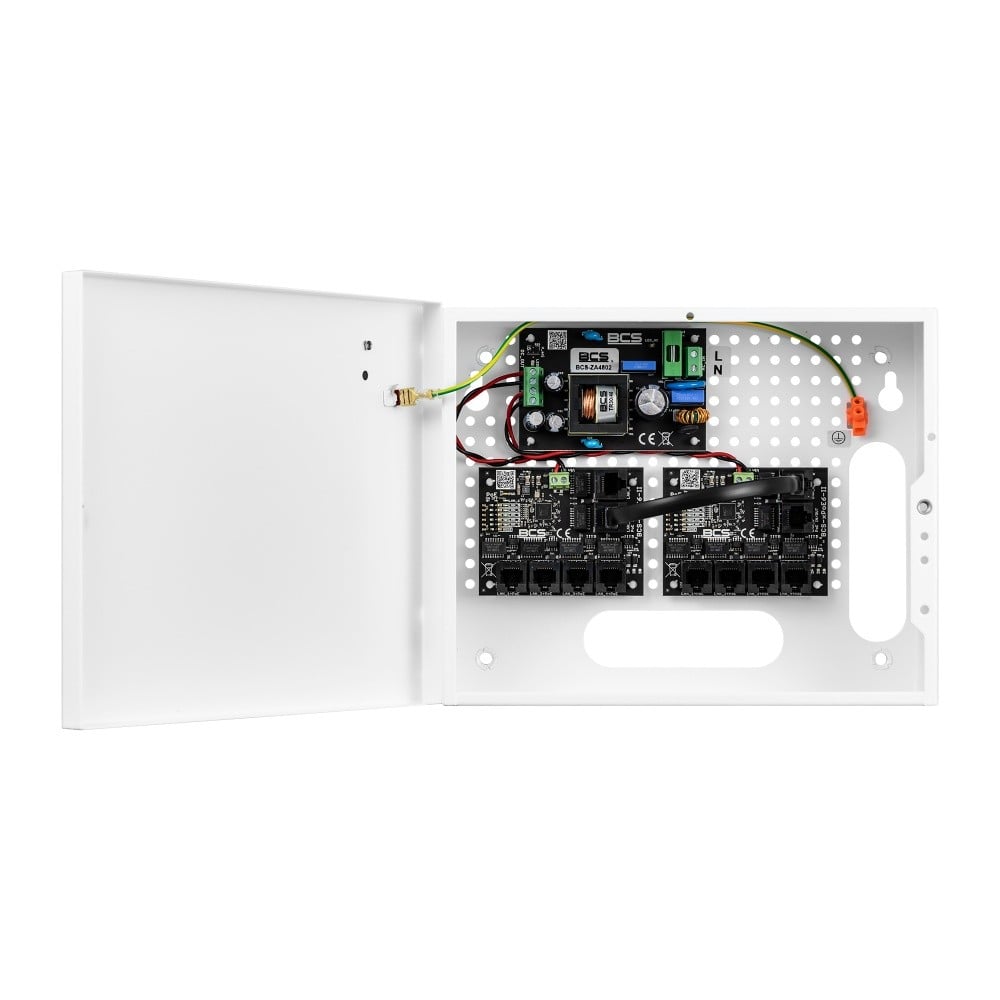

Encased in a sturdy BCS-E internal housing, the kit not only ensures
optimal functionality but also offers an aesthetically pleasing solution for
concealing networking equipment and wiring within buildings. The housing is constructed
from powder-coated steel for durability and designed with a white finish,
aligning with modern interior design standards. The device features 9 RJ45
100Mbps PoE ports and an uplink port, supporting a total power output of 96W,
meeting the operational needs for various IP devices.

This product is engineered to operate in a wide temperature range of -10°C
to +40°C and is constructed with an IP20 protection rating, making it
suitable for indoor environments. With its compact dimensions of 250×200×85mm
and a weight of 1.52 kg, the BCS BCS-IP8/E-S is a reliable choice for
enhancing your surveillance system’s power management capabilities while
ensuring a clean and organized installation.
