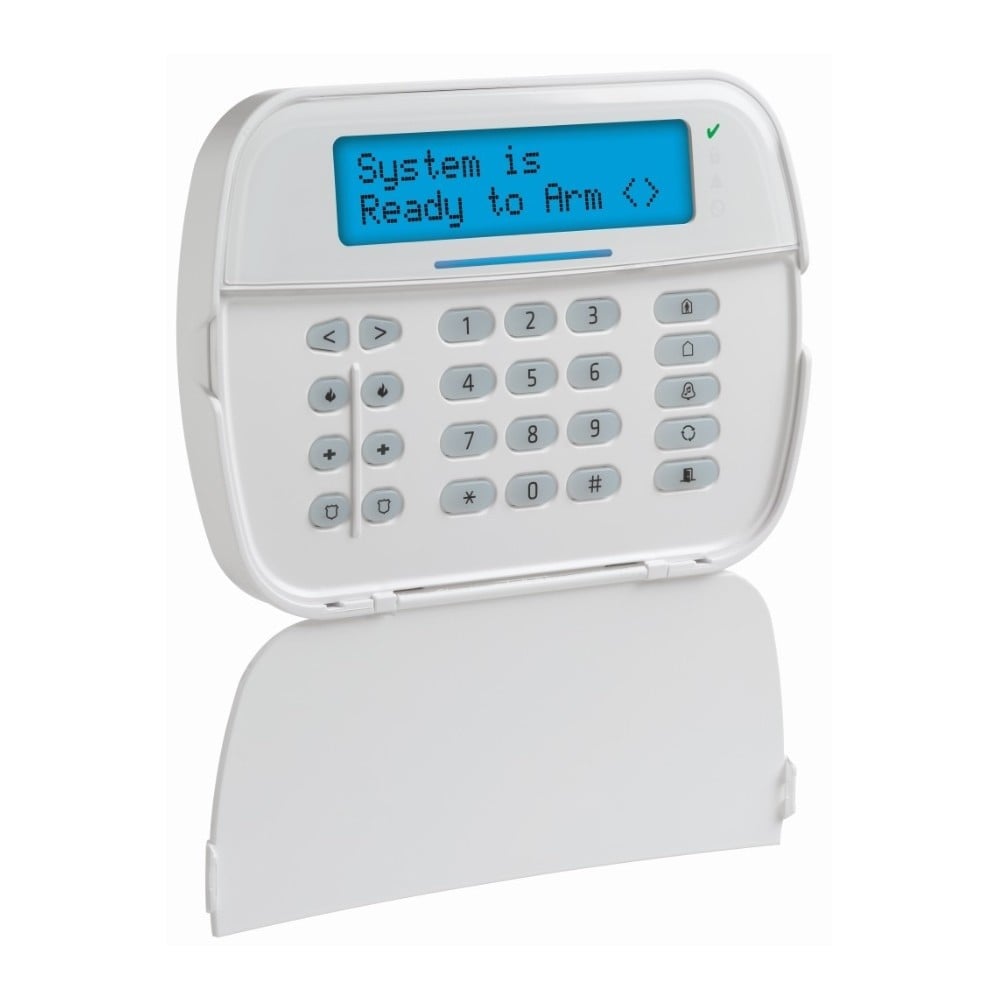

BCS HS2LCDPE3 Backlit LCD keypad for DSC NEO alarm systems

Name: BCS HS2LCDPE3 Backlit LCD keypad for DSC NEO alarm systems | +254720548999
SKU: CS4218-16ET-135
Price: 37723.69 KES
Availability: InStock

KSh37,723.69

>
Product Name: Backlit LCD Keypad for DSC NEO Alarm Systems

>
Compatibility: Works with DSC NEO series control panels

>
Power Supply Voltage: 12 V DC (± 15%)

>
Operating Temperature Range: -10°C to +55°C

>
Keypad Type: LCD

>
Number of Inputs: 1

>
Backlit Display: Yes, blue 2×16 character LCD

>
Dimensions: 168 x 122 x 20 mm

>
Weight: 260 g

>
Vandal Resistance Rating: IK04

>
Ingress Protection Rating: IP30

>
Current Consumption (Standby): 55 mA

The BCS
HS2LCDPE3 is a backlit LCD keypad specifically designed for integration with
DSC PowerSeries NEO alarm systems. Capable of supporting up to 8 subsystems
and 16 lines, this versatile keypad enhances security management with a
proximity reader that allows for seamless arming and disarming of the alarm
system using a proximity fob, eliminating the need to remember complex codes.
Its blue backlit display features a clear text interface, enabling easy
navigation through various functions, while the customizable white backlit
function keys ensure tailored user experience.

With a robust construction, the BCS HS2LCDPE3 boasts a dual tamper
protection system, ensuring the device remains secure against unauthorized access.
Rated at IP30 for enclosure protection and IK04 for vandal resistance, it is
engineered to withstand challenging environments. The device operates on a DC
13.8V power supply, with an operating temperature range of -10°C to +55°C,
making it suitable for various installation scenarios. Furthermore, with a
current draw of just 55 mA in standby mode, it offers efficient energy
management for long-term use.

This LCD keypad not only enhances the functionality of DSC alarm systems
but also reflects the commitment to quality and innovation found in the BCS
product line. The Grade 2 certification in accordance with EN50131 standards
ensures reliability and performance, making it an ideal choice for both
residential and commercial applications.
