BCS HS2LEDE1 Backlit keypad for DSC alarm systems

Name: BCS HS2LEDE1 Backlit keypad for DSC alarm systems | +254720548999
SKU: DS-1271ZJ-130-TRL
Price: 5324.92 KES
Availability: InStock

KSh5,324.92

>
Product Name: Backlit Keyboard for DSC Alarm Systems

>
Manufacturer and Product Number: BCS HS2LEDE1

>
Compatibility: DSC NEO series control panels

>
Power Supply Voltage: DC 13.8V

>
Operating Temperature Range: -10°C to +55°C

>
Dimensions: 168 x 122 x 20 mm

>
Weight: 260 g

>
Ingress Protection Rating: IP30

>
Vandal Resistance Rating: IK04

>
Current Consumption (Standby): 55 mA

>
LED Indicator Lines: 16

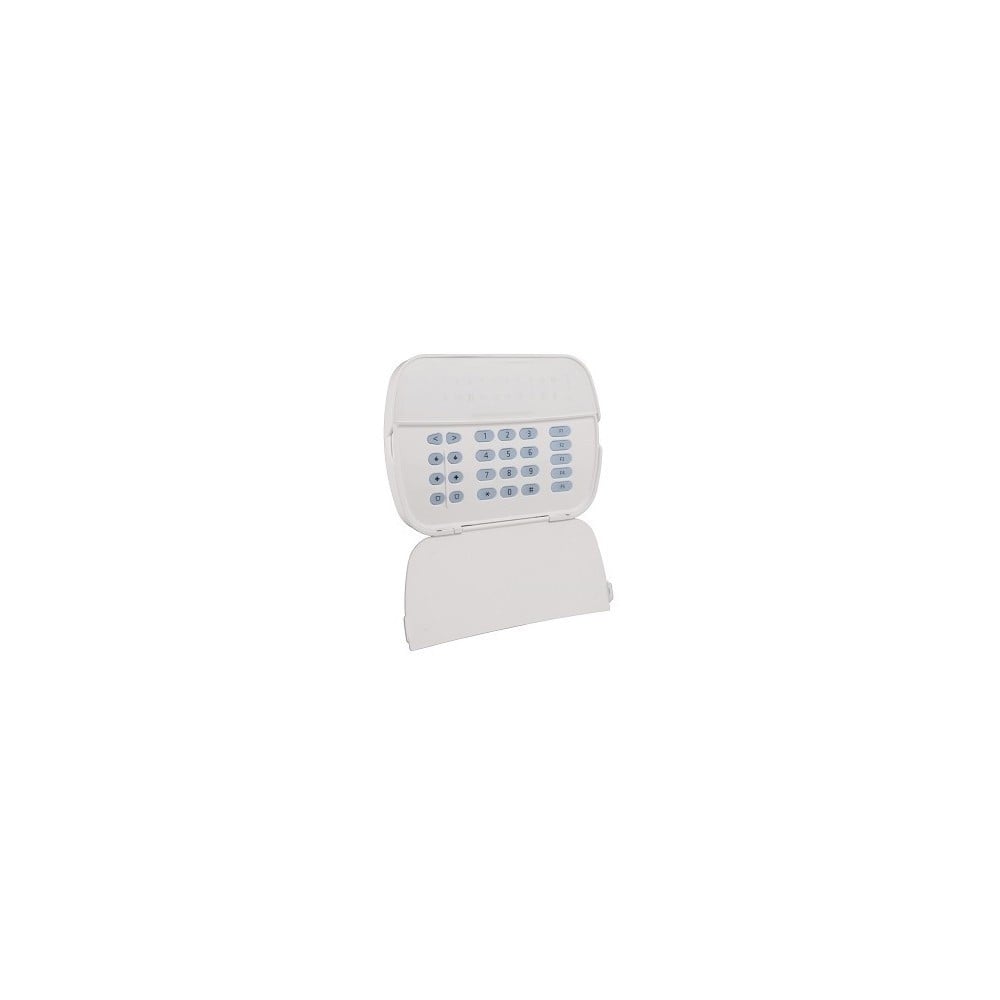

The BCS
HS2LEDE1 is a state-of-the-art illuminated keypad designed specifically for
DSC alarm systems. This model supports up to 8 subsystems and 16 lines,
making it an ideal choice for comprehensive security setups. The keypad
features a user-friendly flat front panel with a soothing white backlight
that enhances readability, while customizable function keys allow for
personalized operation according to user preferences.

Enhancing its reliability, the BCS HS2LEDE1 incorporates an effective dual
sabotage protection mechanism, safeguarding the unit against unauthorized
opening or removal from the wall. The enclosure achieves an IP30 rating for
dust protection and an IK04 vandal-resistant rating, ensuring durability in
various environments. Powered by DC 13.8V, this keypad operates smoothly
within a temperature range of -10°C to +55°C, making it versatile for
different applications.

Further emphasizing its technological edge, the keypad features a status
indication for lines via 16 LED diodes and allows users to adjust the volume
of the buzzer and backlighting for optimal usability. This combination of
functionality and robust design positions the BCS HS2LEDE1 as a leading choice
in modern alarm management solutions.
