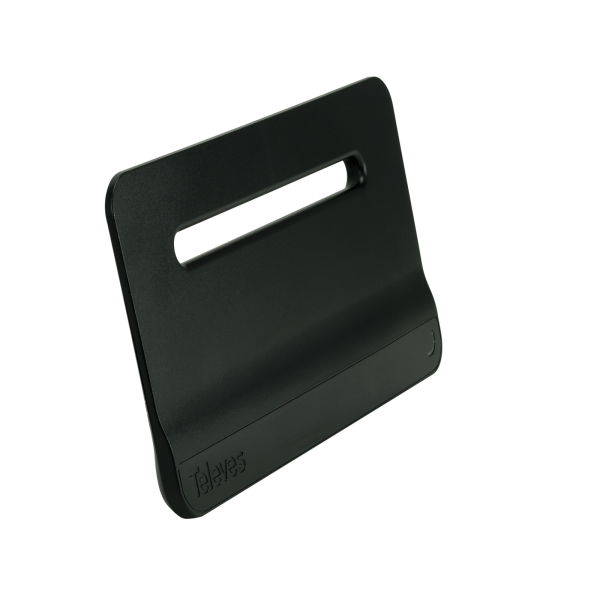

Bexia Televes indoor DTT antenna with 5G filter
Bexia indoor DTT antenna LTE700
Indoor antenna for receiving DTT terrestrial signal reference 130501**by Televes.
BEXIA is an antenna prepared for the impending 2nd Digital Dividend from 2020, it has LTE filters to eliminate interference with the bands occupied by 5G and 4G.
It includes Televes BOSS Tech technology that automatically controls the antenna gain based on the level of signal it receives.
Another great feature of the BEXIA antenna is the low consumption it has. It needs to be powered at only 5V, being able to power through the USB port of the TV or with a conventional Smartphone charger, since its power input is micro-USB.
BEXIA Televes smart indoor DTT antenna with BOSS technology and LTE700 filter for the 5G.
What are the main features of the Telexia Bexia 130501 antenna?
Intelligent antenna equipped with the BOSS system, which automatically regulates the gain to always provide the optimum output level, even in low-coverage areas
Multidirectional TV reception (360?): no pointing needed
The antenna electronics substantially reduces interference caused by surrounding movement
Mountable in any position: wall, stable base (on table, furniture…)
Plug & Play: Easy and fast installation; just plug in and scan channels
BEXIA can be powered using the USB port of the TV, or using a conventional smartphone charger (5V)
LTE-Ready: equipped with LTE filters to avoid mobile phone signals caused by the use of 5G/4G devices in the environment
Low power consumption in intelligent mode
In areas of good coverage, the antenna can also be operate in passive mode (without power)
What technical specifications does the Bexia 130501 Televes antenna have?
Frequency range MHz 174 – 230 470 – 694
Channels 5-12 21-48
Gain(1) dBi 15 18
Noise figure dB 3 3
Powering Local
(USB) Vdc 5
Consumption mA 80
Protection index IP 20
