Coaxial Extension F – F Male Compression 3m
Preconnectorized Coaxial Extension with Televes Male F-F Connection

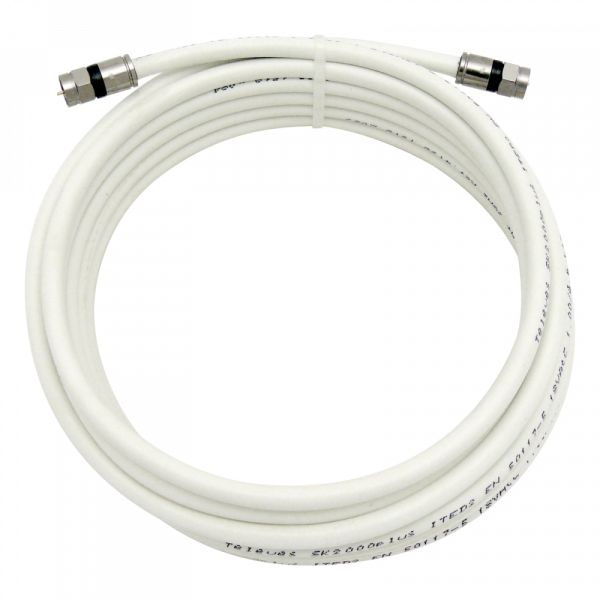

Coaxial extension cable with pre-connected male F connector. We will connect this cable between the socket and the TV device. This cable has great quality, it has triple shielding and class A++.
It has a length of 3 meters, Euroclass Eca. Its central conductor has a section of 1.02mm and is made of copper. It is covered by a tinned copper mesh with a section of 0.1mm. This high quality cable has a second shielding sheet and a 6.7mm diameter PVC outer jacket. The connectors at each end are compression.
Technical Specifications of the Televes Preconnectorized Coaxial Extension Cable with F-F Male Connection
Standard ? EN 50117-2-4
Euroclass ? Eca
Class ? A++
Inner conductor Diameter mm 1.02
Inner conductor Material ? Copper (Cu)
Inner conductor Resistance ?/km < 22
Dielectric Diameter mm 4.6
Dielectric Material ? Foam polyethylene (PEE)
Dielectric Color ? White RAL 9003
Overlapped foil ? Aluminium + Polyester + Aluminium
Braid Material ? Tinned copper (CuSn)
Braid dimensions: No. of carriers (Nc) ? 24
Braid Dimensions: No. of strands per carrier (Ns) ? 7
Braid Dimensions: strand diameter (?) mm 0.1
Braid Resistance ?/km < 10.5
Braid Coverage % 82
2nd foil ? Yes
2nd foil glued to the dielectric ? No
Petrol-Jelly ? No
Anti-migrating film ? No
Outer sheath Diameter mm 6.7
Outer sheath Material ? PVC
Outer sheath Thickness mm 0.3
Minimum bending radius mm 33.5
Transfer impedance (5-30MHz) m?/m < 0.9
1GHz shielding dB > 105
Connector type 1 ? “F” Compression
Connector type 2 ? “F” Compression
Spark Test Vac 3000
Capacitance pF/m 54
Impedance ? 75
Velocity ratio % 84
Operating temperature ?C -30 … 70
Frequencies ?
5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
Attenuation (typ.) dB/m
0.02 0.05 0.05 0.06 0.09 0.14 0.17 0.19 0.19 0.19 0.21 0.22 0.25 0.28 0.3 0.31 0.31 0.32 0.33 0.36
