BIII/UHF-FMmix-FImix LTE 5G Mast Amplifier

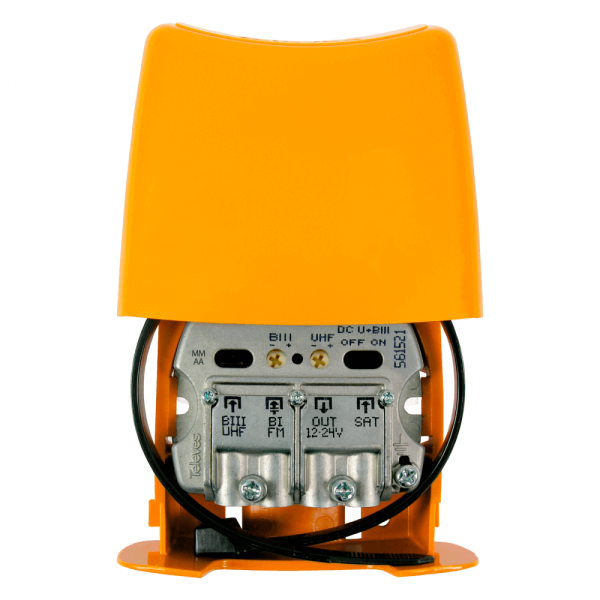

Televes BIII/UHF-FMmix-FImix NanoKom 561521 Mast Amplifier
NanoKom mast amplifier of 3 inputs: BIII/UHF, FM mix, and Satellite mix. It offers a gain of 28dB for UHF (470-694 Mhz) and 18dB for BIII (174-254 Mhz). Amplifier with 5G LTE filter, adapted to the 2nd Digital Dividend.
Once the installer selects the desired output signal, the amplifier with USOS technology maintains that stable level, automatically adjusting itself to adapt the gain to the variations in the input signal. The amplifier includes a DC current pass**to feed a DTT antenna with the BOSS system and the LNB of the satellite dish.
Ultra-slim design with a rugged ABS plastic housing for outdoor installation, with EasyF connection, no connectors required.
Televes NanoKom Mast Amplifier for BIII/UHF with LTE 5G plus FM and FI mix.
What are the main characteristics of the Televes 561521 mast amplifier?
Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device automatically adjusts gain according to the input signal variation.
Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
LTE filter to remove mobile phone interference
ON/OFF switch to allow DC pass towards the UHF input for the powering of a BOSS system
Easy mounting. Equipped with a plastic tie for mast mounting
Resistant ABS-plastic orange case for outdoor installation
What technical specifications does the Televes 561521 mast amplifier have?
Bands UHF + BIII BI + FM SAT
Frequency margin MHz 470…694 174…254 47…108 950…2150
Gain dB 28 18 -1,5 -2.5
Gain adjustment range dB AUTO
0 … 15 AUTO
0 … 15 – –
Max.output level dB?V DIN 45004B 108 106 – –
EN 50083 115 113 – –
10 CH DVB-T 94 – – –
2 CH DVB-T – 90 – –
Output level regulation margin dB ? 0…12 ? 0…12 – –
Noise figure dB 2 3 – –
Power supply V /mA 12-24 / 50
Max current through inputs OFF mA 0
ON 40 – –
DC OUT -> DC SAT – – – 300
Protection Level IP 23
Temperature operat. limits ?C -5 … +45
