Multimode Fiber Optic Pigtail OM4 0.9mm Simplex LC/PC LSFH 2m

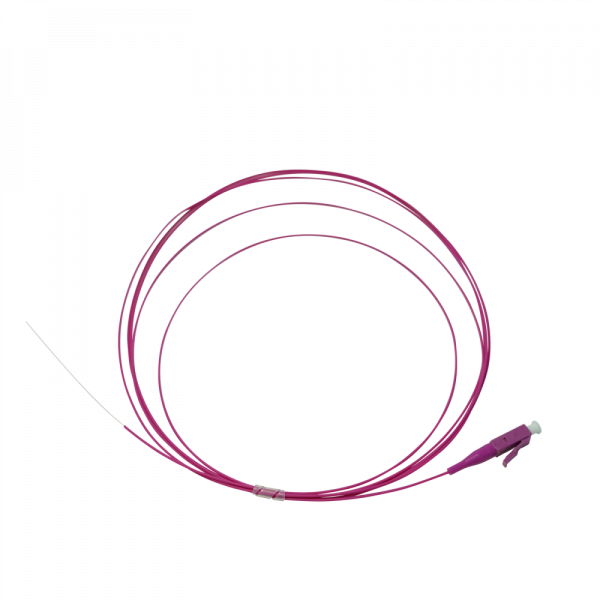

OM4 Multimode Pigtail with Simplex LC/PC connector from Televes
This multimode fiber optic pigtail is used to merge multimode fiber cables in communications racks and extend the signal to another location. The length of this pigtail is 2 meters.
This fiber optic pigtail has an LC/PC connector at one end and the other is free to easily merge with the fiber cable. Its 0.9mm cover is LSFH halogen-free, suitable for indoors.
This cable comes in aqua magenta, the cable type is multimode OM4 ITU-T G.651.1.
Technical Specifications of the OM4 Multimode Pigtail with Simplex LC/PC connector from Televes
?
Fiber core type ? Multi-mode (ITU-T-G.651.1)
Optical fiber type category ? OM4
Fiber core diameter ?m 50
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Outer sheath Diameter mm 0.9
Outer sheath Material ? LSFH
Blocking jelly ? No
Insertion losses in connector 1 dB < 0.3
Return losses in connector 1 dB > 30
Optical connector type 1 ? LC
Polishing type (Optical connector 1) ? PC
Minimum bending radius mm 4.5
Operating temperature ?C -20 … 70
