Box for T12 headers (10 modules + power supply) Televes
Box for Headers T12 (10 Modules + Power) Televes 5072

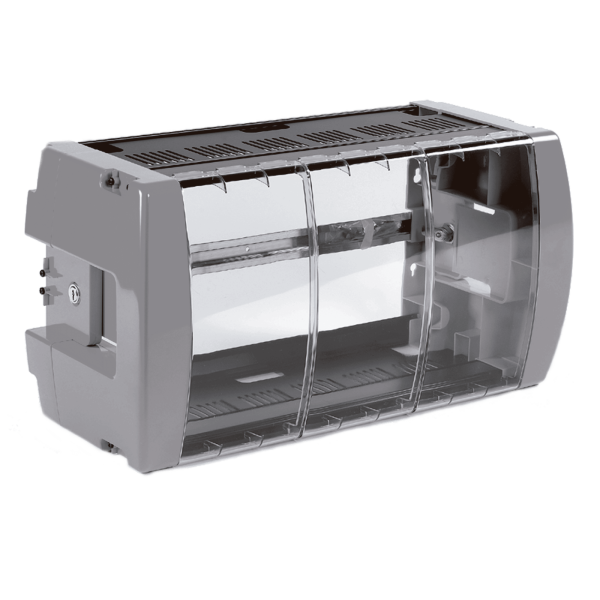

Box for single-channel equipment of the Televes T12 series, also compatible with previous T03 and T05 models. Measuring 292 (H) x 498 (W) x 180 (D) mm, this box offers enough space to install up to 10 modules plus the power supply.
It has ventilation grills to prevent overheating of these equipment. Its key lock keeps the installation protected, preventing the configuration from being modified by outsiders.
Designed for wall installation, with screw-on back plate.
Televes T12 Series Monochannel Headend Box with space for 10 Modules + Power
What are the main characteristics of the T12 Televes 5072 Monochannel Box?
Chest with vents
It has a lock for better security
Compatible with T03 / T05 systems
Capacity for 1 source and 10 T.12 modules
Wall mounting via screw-on back plate
With DIN rail for the installation of the modules
The measurements of the Televes 5072 chest are 292 (h) x 498 (w) x 180 (d) mm
