Nevoswitch 5 in x 5 outs x 16 for floors “F” Terminal/Cascade
Nevoswitch 5 inputs x 5 outputs x 16 of floor “F” Terminal/Cascade

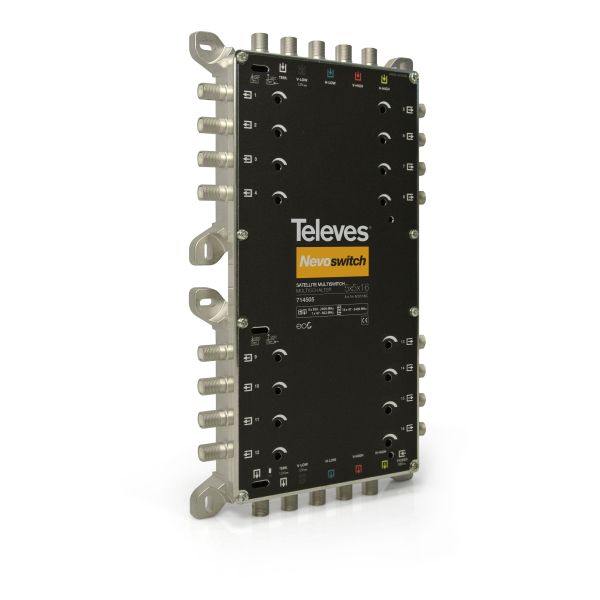

Nevoswitch 5 inputs x 5 outputs x 16 floors “F” Terminal/Cascade. Ref: 714505. This is a configurable element to better adapt the signal. Thanks to its small size and its design it is easy to handle.
12 dB potentiometer on each output**to improve the level individually. It has a switch to feed terrestrial previous or the passage of current.
Made of**zamak, it is**small in size and compact.**It has**color identification**both at the input and at the output.
The multiswitch has an**ECO mode**to reduce consumption, as well as a switch to change its use between cascade and star.
The**power supply**can be done through the satellite receiver autonomously, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.
Nevoswitch Technical Specifications 5 inputs x 5 outputs x 16 plant “F” Terminal/Cascade
Characteristics:
Reduced size.
Configurable.
Independent amplification of lines.
Multiple feeding options.
Independent regulation.
?
Type ? ? 5x5x16
Frequency range MHz SAT 950 … 2200 / 2400
TERR 47 … 862
Input level dB?V SAT 105
TERR 92
Through losses dB SAT 3 … 6 / 8
TERR 4
Tap losses (2) 1..8 /
9..16 / 17..24 /
25..32 dB SAT 1(1) / 2 / – / –
TERR 2 / 4 / – / –
Isolation dB H/V >30
Users >25
DC pass ? In-Out / Out-In
Max. total consump mA PSU 105
SAT STB(4) 35
Temp. range. ?C ? ?5 … +45 ?C
Protection level IP ? IP20
