Broadband LNB 2 outputs V/H Televes

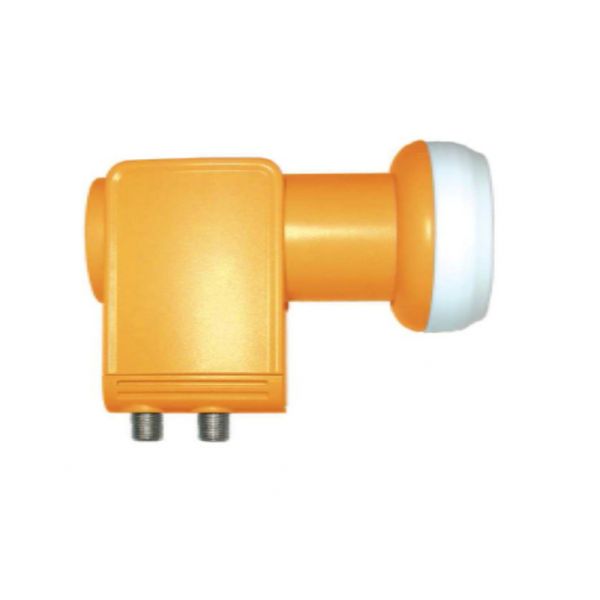

Broadband LNB converter 2 outputs V-H 747402 Televes
This Overlight series LNB is capable of capturing the entire frequency spectrum of a satellite and transmitting it in 2 outputs (Vertical/Horizontal) in a range between 290 and 2340MHz. Its most special feature is that it has a single local oscillator, in addition to having a high gain (57dB).
It is compatible with 40mm supports and its consumption is minimal. Their connection is made very simply. It has a small, compact size and consumes very little.
This type of LNB can be used with optical transmitters from the same Overlight range. It can be powered via the Overlight Optical Transmitter Module (237501 or 237502).
Technical Specifications of Broadband LNB converter 2 outputs V-H 747402 Televes
What features does this LNB 747402 have?
?
Frequency range
GHz
10.7 … 12.75
Output frequency range
MHz
290 … 2340
L.O. frequency 22KHz
GHz
10.41
Gain
dB
57
Noise figure
dB
1
L.O. stability
MHz
-1.5 … 1.5
Polarities discrimination
dB
> 20
Phase noise (@10 KHz)
dBc
-80
Powering
Vdc
10.5 … 21
Max. current
mA
100
Impedance
?
75
LNB-bracket diameter
mm
40
Operating temperature
?C
-40 … 60
