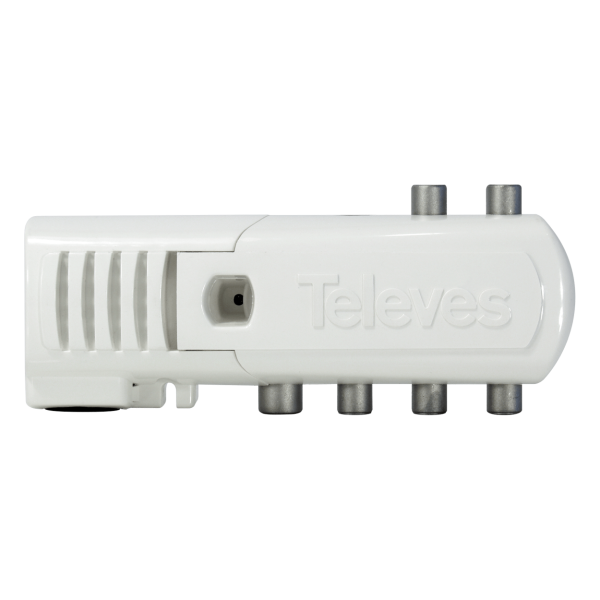

Televes Indoor Home Amplifier 5 UHF/VHF Outputs 16dB IEC Connector
Indoor Home Amplifier VHF/UHF 5 outputs CEI Televes 552920
IEC**home amplifier for DTT (47-790 MHz) with 16 dB gain, with 1 input and 5 outputs (4+TV). The TV output offers a lower gain (11 dB) for direct connection to the TV, without installing a power outlet. This amplifier features a 4G LTE filter to eliminate telephone interference from the First Digital Dividend.
Recommended for installation in single-family homes. Compact and discreet design for placement in a home’s telecommunications junction box. The gain can be adjusted manually by lifting the protective cover.
It includes a high-performance power supply: with energy savings of up to 40% compared to a standard amplifier.
Technical Specifications of the Televes 552920 IEC 5-Output VHF/UHF Indoor Home Amplifier
Number of exits ? 4
TV output ? And
Frequency margin MHz
47 … 694
Revenue dB
16
Profit @TV dB
11
Gain regulation margin dB
0 … 15
DIN45004B output level dB?V
102 > 102
Output level EN50083 IMD3 2tones -35dB dB?V
109 > 109
Noise figure dB
6
Input voltage Vac 196 … 253
Network frequency ? 50Hz / 60Hz
Max current m.a. 23
Max power consumption IN 2,3
Operating temperature ?C -5 … 45
Protection index (IP) ? 20
