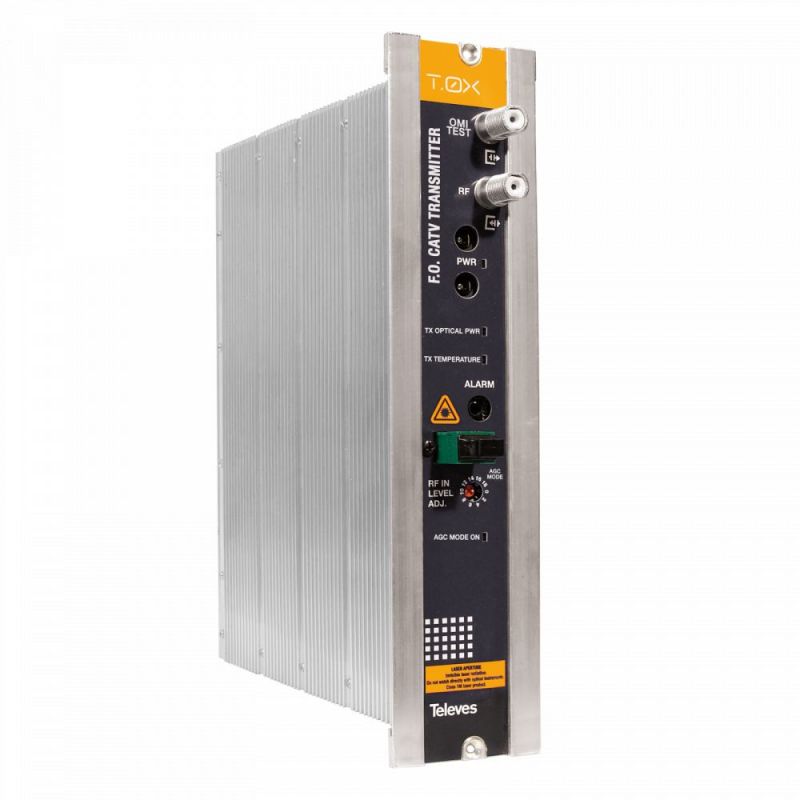

CATV optical transmitter with CAG without C.Retorno 1310nm…
KSh552,244.00
Produces an optical signal in the 1310 nm-window modulated by the input RF CATV signal (47 MHz – 1100 MHz). The optical output power is 10 dBm.?
Equipped with automatic gain control (AGC).?
Stable in terms of temperature, thanks to the laser temperature control circuit.?
Perfect for RFoG / RF Overlay solutions.
Highlights
MATV-compatible: up to 1100 MHz bandwidth
OMI (Optical Modulation Index) test point
Optical power and laser temperature LED indicators
MQW-DFB refrigerated laser
AGC with operation LED indicator
Wide range of input power values
Optical power drop alarm
Features
Very low equivalent noise conversion
Easy to install and use
High energy efficiency
SC/APC optical connectors, and F-type connectors for RF
Specifications
Optical transmitter
RF parameters RF frequency range MHz 47-1100
RF input level dB?V/dBmV 75-90 / 15-30
RF manual gain adjust dB 0 … 14 (steps 2 dB)
CAG control dB 15
Flatness dB ?1
Return losses dB ? 15 (typ)
Impedance Ohm 75
CSO (CENELEC 42) note 1 dB 60
CTB (CENELEC 42) note 1 dB 60
C/N note 1 dB >52
Optical Laser type MQW-DFB cooled
Wavelength nm 1310+/-10
Optical power dBm 10
Optical return losses dB 50
General RF connectors type F female
Optical connectors SC/APC
Supply voltage Vdc 12-24
Power consumption mA 360-220
Operation temperature ?C / ?F -5??.45 / 32??.113
