Central Broadband MiniKom EasyF 4 Inputs and 1 Output Televes 562422
Central Broadband 4 Inputs MiniKom EasyF

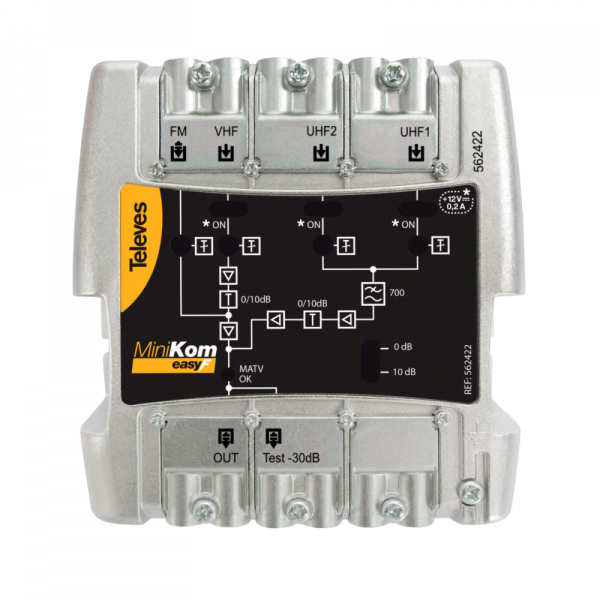

Broadband amplifier with 4 inputs (FM, UHF1, UHF2, VHF) and one output. It also has an LTE700 filter. This power station has a very compact size.
The VHF and UHF inputs have two selectable gain ranges, while the FM input has a single amplifier stage. It also incorporates a signal indicator led, which will detect failures in the network.
This type of amplifier is used in small and medium collective terrestrial television distributions. Its EasyF connection system saves on installation time. It is a new connection concept where there are no F connectors, the assembly is done by screwing the cable to the fixing flange, so we do not need additional F or CEI connectors.
Technical Specifications of the 4-Input Broadband Central MiniKom EasyF
?
Bands U1-U2 VHF FM
Frequency margin MHz 470…694 174…400 88…108
Gain 0 dB 36 34 15
10 26 24
Gain adjustment range Manual
0 … 20 Manual
0 … 20 Manual
0 … 20
Max. output level IMD3 (2ch, -35dB) dB?V 123 121 120
DIN 45004B 116 114 113
IMD3 (2ch, -60dB) 113 111 –
IMD2 (2ch, -60dB) – 103 –
Noise figure dB 10 5 6
Test -30
Power supply inputs V 12 12 –
Max. current through inputs mA 200 200 –
400 max.
Mains voltage / frequency V~ /Hz 220 – 230 / 50-60
Total AC consumption (without input powering) OFF W, mA 4.6 / 55
Total AC consumption (with input powering) ON W, mA 10.5 / 110
Protection index IP 20
Operating temperature range ?C -5 … +45
