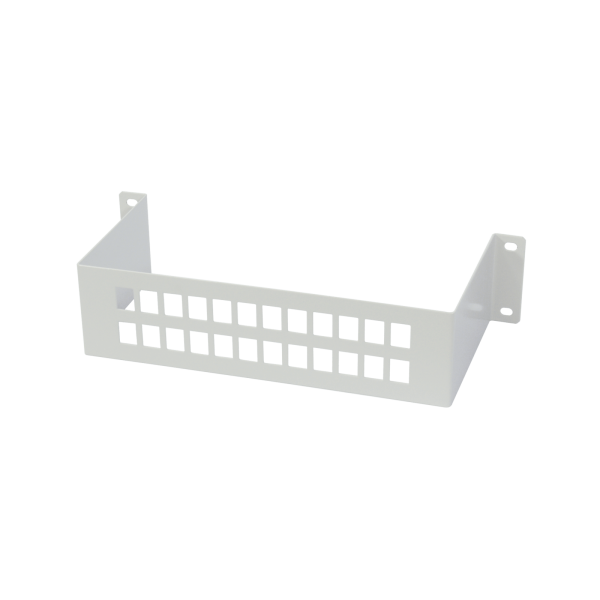

Open Main Panel for data/coax 24 connections
Open Main Panel of 24 Televes 546610 connectors
Open registration to make an interconnection point between two data cable networks or two coaxial cable networks with female “F” to “F” female adapters with RJ45 base.
Its small size allows it to be installed at any point and includes the necessary hardware for fixing to the wall.
This panel is made of 1.5mm thick steel and lacquered in gray.
Televes open main panel for data cable networks and coaxial cable networks.
What are the main features of the Televes 546610 open main panel?
Built in 1.5mm thick steel and lacquered in gray (RAL 7035)
Compatible with RJ45 female connectors
Compatible with female “F” to “F” female adapters with RJ45 base (ref. 546620)
Includes wall fixing screws
