Central Line Amplifier 2 FI + 1 MATV DTKom Televes
Central Amplifier DTKOM 2 FI + MATV G. 47/42 dB vs 123/120 dBuV Televes
With the TEL5337 central amplifier we can obtain a high quality signal to be able to distribute it throughout the installation.
This central amplifier can be used as reamplification in ICT lines, thus being very easy to install. Its return amplifier can be switched both active and passive, it consists of 2 downstream channels, one in MATV coding and the other in FI.
It is designed with Power Doubling technology that guarantees levels of 129 dB**V in terrestrial and its amplification is separated, it minimizes intermodulation between the bands and this allows high output levels.
Its chassis is very resistant, it is made of Zamak and its design makes it easy to cool, its front panel is very intuitive and it has an output signal indicator LED.
DTKOM central amplifier are manufactured with Push and Pull technology.

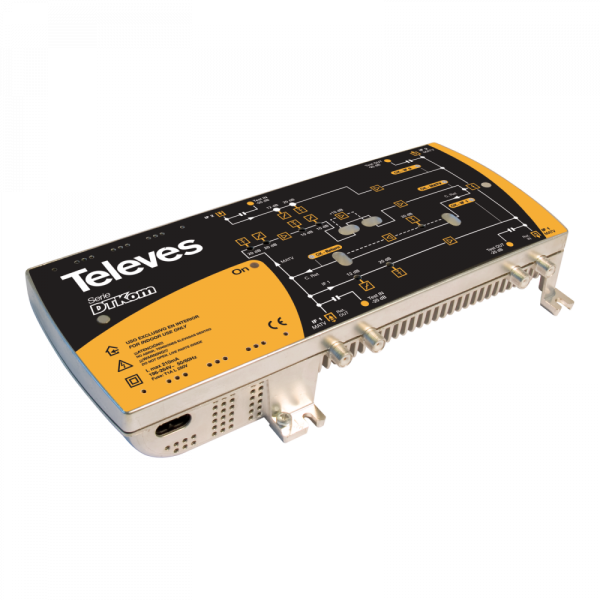

Central Amplifier DTKom TEL5337 of Televes
What characteristics does Televes TEL5337 amplifier unit have?
Central amplifier for ICT with two downcomers (FI 1, FI 2), with two FI amplifiers and MATV amplification for one of them
It also has a return amplifier, active / passive switchable
Its typical application is as reamplification in ICT lines
Has pre-emphasis and equalization stages
Its gain is configurable for terrestrial and for the return channel, through two switches
It has a built-in low-consumption, high-performance switching power supply
