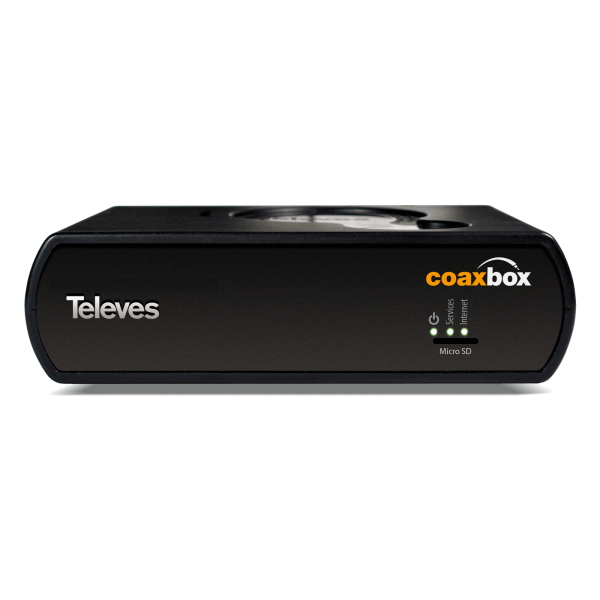

Coaxbox device for network management Coaxdata
Coaxdatas Manager 769330 of Televes
The Coaxbox equipment incorporates software that allows the management and monitoring of devices connected by CoaxData network quickly and efficiently thanks to its powerful CPU.
Coaxbox includes several applications such as: AdminService for the configuration of the device itself, AccessControl for the configuration of CoaxData devices and CoaxProv for provisioning CoaxData devices with MyNET Wi-Fi.
This system allows you to establish the bandwidth and the number of users, it also helps to identify and solve possible failures.
CoaxBox 769330 Televes device to manage and monitor your CoaxData network in a single device. What is a CoaxData network and what are its advantages?
What are the main features of Televes CoaxBox 769330 manager?
CoaxData network provisioning
Displays the status of each CoaxData device
Equipped with a self-provisioning function
Simple and intuitive web interface
Outstanding performance thanks to a powerful processor
LLDP (Link Layer Discovery Protocol), quick network scan for the detection of connected CoaxData devices
SNMP (Simple Network Management Protocol) report production and alarm generation
CoaxBox status LED
4 Gb internal eMMC memory for data storage
Additional storage space can be provided by means of microSD
TFTP server for the firmware update of any device
The CoaxData Gateway firmware (Ref.769301) can be updated through a web interface
What technical specifications does Televes manager Coaxbox 769330 have?
CPU Processor Cortex A9 dual Core
?Memory DDR 1 GByte DDR3
eMMC 4 GByte eMMC
(solid-state drive)
Flash 16 MByte NOR SPI (Boot)
?Connectors Power supply RJ9 (12 VDC)
Ethernet RJ45 10/100/1000 Base-T
Ethernet. Auto Crossover
SD Slot Micro SD connector
?LED Power LED
Internet connection LED
Service LED
?Access account IP address 169.254.1.254
Root account User Root
Password 76Coax93Box30
Admin account User Admin
Password Televes1
?Operating system Linux Linux Kernel 3.10.53?
or higher
GENERAL
?Power supply Adapter Input: 108 – 254 V~ 50/60 Hz
Output: 12 VDC – 0,7 A
CoaxBox 12 V 250 mA; 3 W
?Operating temperature ?C / ?F -5 … +45 / 23 … 113
