Data coil Category 7 White (500 meter coil) 219102
Data coil STP CAT7 Cca Cu LSFH White (500 meter coils)
This coil is supplied on a wooden reel, with a length of 500 meters of white cable (RAL 9010).

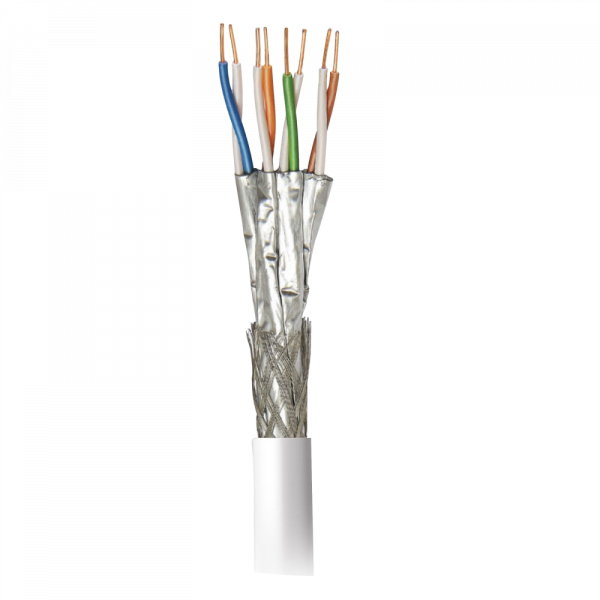

The data cable is category 7 and Euroclass Cca. It is shielded both individually in its pairs and at the general cable level. It is an S/FTP type cable, whose central conductor is solid copper.
This cable is ideal for the installation of data networks in computers, surveillance cameras, switches, intercoms, etc.
It complies with the standard for 10 gigabit Ethernet, being compatible with the lower categories, being able to reach a transmission frequency of up to 600MHz.
Technical Specifications of the Data Coil STP CAT7 Cca Cu LSFH White (coils of 500 meters)
?
Type?S/FTPEuroclass?CcaEuroclass: Smoke Production?s1aEuroclass: Flaming droplets?d1Euroclass: Acidity?a1Categorie?Cat 7Transmission bandwidth?600MHzTransfer rate?10GbpsConductor Diametermm0.55Conductor Material?Solid copperConductor type AWG?23Conductor isolation Diametermm1.3Conductor isolation Material?PolyethyleneCrucifix filter?NoShielding foil of pairs?Aluminium + PolyesterOuter shielding braid?Tinned copper (CuSn)Outer sheath Diametermm7.4Outer sheath Material?LSFHOuter sheath Thicknessmm0.7Rip cord?NoSpark TestVac3000Nominal impedance?100Nominal speed%79Operating temperature?C-25 … 70Frequencies?
1 MHz 4 MHz 10 MHz 16 MHz 20 MHz 31.25 MHz 62.5 MHz 100 MHz 155 MHz 200 MHz 300 MHz 600 MHz 750 MHz 900 MHz 1000 MHz
Attenuation (typ.)dB/100m
1.8 3.3 5.3 6.8 7.6 9.8 13.6 17.5 22 25.2 30.9 44.5 54 57 62
NEXTdB/100m
100 100 100 100 100 100 100 100 100 100 90 90 83 81 80
PS-NEXTdB/100m
97 97 97 97 97 97 97 97 97 97 92 87 80 78 77
ELFEXTdB/100m
107 107 104 100 100 97 95 92 88 84 78 64 56 49 48
PS-ELFEXTdB/100m
104 104 101 98 95 94 92 89 85 81 76 61 56 46 45
Return lossesdB/100m
26 30 33 33 33 33 33 33 32 32 30 25 24 21 20
