CoaxDada G.hn 2xEthernet + Wifi node from Televes

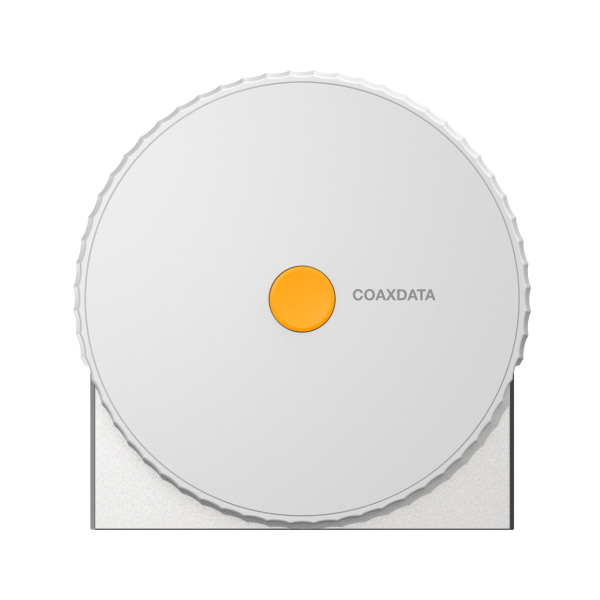

Televes CoaxData G.hn 2xEthernet + WiFi Node The Televes 769321 CoaxData node is a device designed to convert the TV cable into a high-speed network. The node will receive the signal sent by the coaxial network master and transforms the data services to Ethernet and WiFi, maintaining the TV service in the coaxial socket. Its use is very useful in applications such as hotels, hospitals, educational centers or historical buildings where high speed internet access can be provided in each room using the existing coaxial cable infrastructure; or when the installation of new cables is complicated or has conservation restrictions.…

Description

INTERFACES
Ethernet 2 x RJ45 Female
10/100/1000 Base-T Auto MDI-X
WiFi 2,4G IEEE 802.11b/g/n
5G IEEE 802.1ac 2×2 MIMO
RF 2 x F Female
DIPLEXOR RF
Impedance ? 75
Data Band MHz 1 … 200
TV band MHz 290 … 2350
TV feed-through losses dB <1,5 Pass-through losses Data/TV dB <1,5 Return losses dB >10
DEVICE CONFIGURATION
Network protocols 802.1D Ethernet Bridge 802.1Q VLAN
Quality of Service (QoS)
IGMP (IPv4) and MLD (IPv6)
POWER SUPPLY
Connector 1 x Jack
Input voltage VDC 12?24
Max. power consumption W 8
Operating temperature ?C 0 … 45
