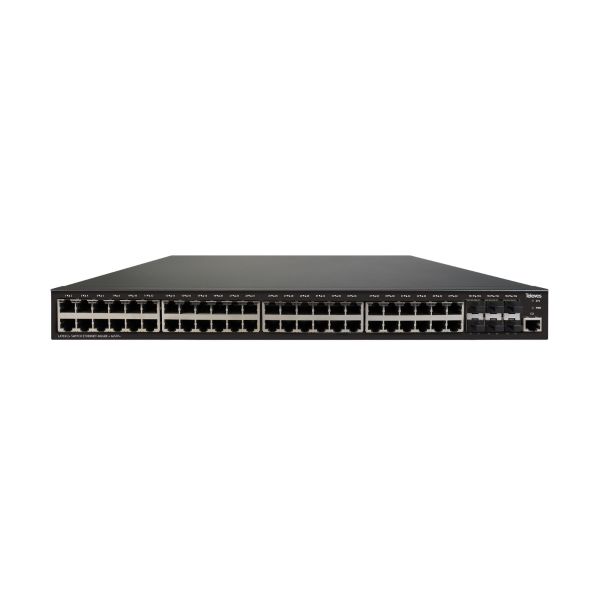

Televes 48-Port 1Gb and 6 SFP+ 10Gb Managed Switch
Televes Switch 48 Gb Ports + 6 SFP+ 10Gb ports 769145
Looking for a professional switch to manage large volumes of traffic with flexibility and total control** The Televes 769145 is your best ally. This enterprise-level manageable switch incorporates 48 Gigabit RJ45 ports (10/100/1000 Mbps) along with 6 SFP+ 10 Gb slots, making it a perfect solution for backbone or distribution networks where high capacity is essential.
It is designed to be 19″ rack-mountable (1U) and features advanced management functions such as VLAN, QoS, IGMP Snooping, Link Aggregation, SNMP, among many others. In addition, it includes an intuitive web interface for easy configuration or integration into centrally managed networks.
Its robustness, stability and capacity make it ideal for enterprises, data centers, intelligent buildings or IP video surveillance networks that require constant, uninterrupted traffic.
This switch is like a 10-lane highway for your data: no bottlenecks and guaranteed direction! Can it be monitored remotely** Yes, the switch is fully manageable and supports SNMP and remote control via web interface.
Package contents:
Televes 769145 switch
Power cable
Rack mounting screws
Quick Start Guide
The Televes 769145 switch provides you with: power, advanced management and professional reliability for your network.
Technical Specifications of the Televes 769145 48-Port Gb + 6-Port SFP+ 10Gb Switch
Switch Type
?
Layer 2+
Stacking function
?
And
Number of Gigabit Ethernet ports (10/100/1000BaseT)
?
48
Number of SFP+ ports (10 Gbps)
?
6
Switching capacity
Gbps
216
MAC addresses
?
16000
Number of VLANs
?
4000
Jumbo Frame
B
9000
Input voltage
Vac
100 … 240
Network frequency
?
50Hz / 60Hz
Max power
IN
45
Operating temperature
?C
0 … 50
Color
?
Negro
