CoaxData G.hn Master Up to 64 Nodes by Televes

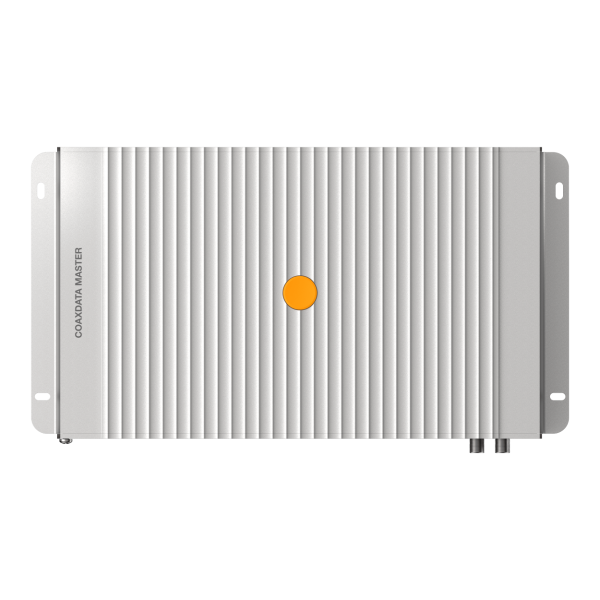

Televes CoaxData Master up to 64 Nodes
Transform your TV cable into a high-speed network! Thanks to the Televes CoaxData 769310 master, you can turn your business TV cable into a high-speed data network of up to 1.7Gbps, without any works and without having to stop the activity of your business.
It is ideal for large professional installations, such as hotels and small and medium scale businesses, as it is capable of managing up to 64 nodes or points of connection to the network in cable runs of less than 1.8 km. It has 4 independent G.hn domains, distributing the bandwidth efficiently among the nodes.
Many businesses rely on coaxial cable networks, as they are the oldest for distributing television signals. The CoaxData series is a professional solution that takes advantage of the existing cabling to transform it into an ultra-fast ethernet network.
Its installation is very simple and uncomplicated, as it is plug and play. The master will be installed at the head-end of your coaxial infrastructure. Through its web interface you will be able to adjust and monitor the network with little effort, ideal for professionals looking for flexibility and control. It includes a web/CLI interface to customize the network configuration and monitor all elements.
It has a robust design, provides great heat dissipation, which will ensure optimum performance and high efficiency. It adapts to any environment, has a low power consumption and a compact design that can be installed on a wall or rack.
Especificaciones T?cnicas del Maestro CoaxData de hasta 64 Nodos de Televes
INTERFACES
Ethernet 4 x RJ45 Female 10/100/1000 Base-T Auto MDI-X
RF 2 x F Female
GENERAL CHARACTERISTICS G.HN
Number of embedded G.hn domains 4
Maximum number of nodes per domain G.hn 16
Bandwidth MHz 200
Max. link speed Gbps 1,73
Max. signal strength dBm/Hz -81
Standards and protocols Complies with ITU-T G.996x recommendations
Advanced Encryption Standard (AES) 128 bit
Quality of Service (QoS) Prioritisation
OFDM up to 4096-QAM
Power mask and notch filtering
DIPLEXOR RF
Impedance ? 75
Data Band MHz 1 … 200
TV band MHz 290 … 2350
TV feed-through losses dB <1,5
Pass-through losses Data/TV dB <1,5
Return losses dB >10
DEVICE CONFIGURATION
Network protocols 802.1D Ethernet Bridge
802.1Q VLAN
Quality of Service (QoS)
IGMP (IPv4) und MLD (IPv6)
POWER SUPPLY
Connector 1 x European IEC-C7 connector
Input voltage VAC 100?264
Network frequency Hz 50/60
Max. power consumption W 19
Operating temperature ?C 0 … 45
?
Physical Data
Net weight:3,061g
Gross weight:3,390g
Width:332mm
Height:189mm
Depth:65mm
Main product weight:2,829g
