Coaxial Cable Cu/CCA Eca Indoor PVC Black (100m)
Coaxial Cable CXT Cu/CCA Euroclass Eca Indoor PVC Black (100m) Televes 2139

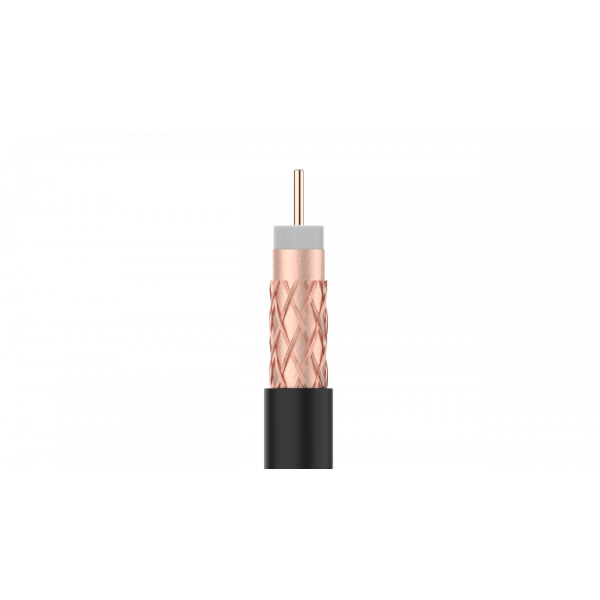

75** Coaxial Cable with internal conductor made of Copper (Cu), Copper Clad Aluminum (CCA) mesh and Black PVC sheath for indoor routes.
This cable offers 2 shielding layers of Class B. It is Euroclass Eca rated for non-propagation of flame in the event of fire.
Coaxial cable for indoor distribution of TV-SAT signals (5-2300 MHz).
Coaxial Cable CXT Cu/CCA Euroclass Eca for Indoor in Black (100m)
What are the main characteristics of the Televes 2139 Coaxial Cable?
Copper inner conductor and copper-clad aluminium braid
Eca Euroclass
Black-colour external PVC sheath
75 Ohm characteristic impedance
What technical specifications does the Televes 2139 Coaxial Cable have?
Type CXT
Standard EN 50117-2-4
EuroClass Eca
Class B
Inner conductor ? mm 1
Material CU
Res. Ohm/Km <23
Dielectric ? mm 4,8
Material PEE
Overlapped foil Copper + Polyester
Braid Material CCA
Dimensions (Ncx Nsx ?) 16 x 3 x 0,12
Res. Ohm/Km <35
Coverage % 35
Anti-migrating film No
Petrol-Jelly No
Outer sheath ? mm 6,6
Material PVC
Minimum bending radius mm 33
Screening attenuation @ 1GHz dB >75
Capacitance pF/m 55
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ?15
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0,01
47 0,05
90 0,06
200 0,09
500 0,14
800 0,18
1000 0,2
1350 0,24
1750 0,28
2050 0,3
2300 0,31
