Coaxial Cable Cu/Cu A++ Eca Indoor PVC White (100m)

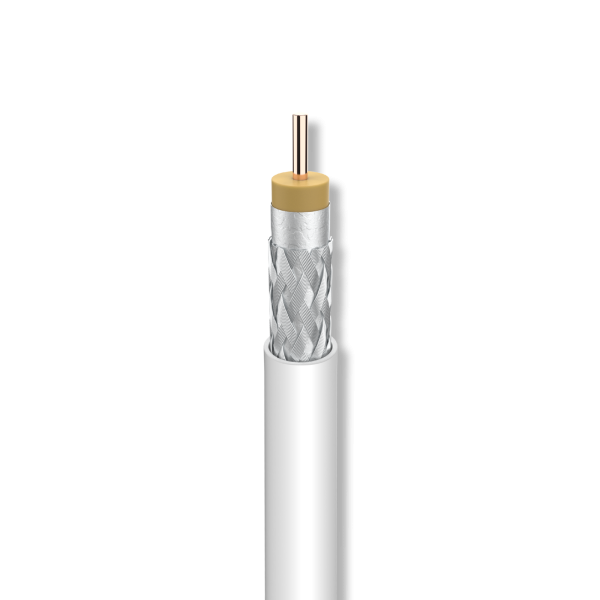

Coaxial Cable SK2000plus Cu/Cu Class A++ Euroclass Eca Indoor PVC White Televes 4138
75** coaxial cable with copper (Cu/Cu) conductor and mesh and white PVC cover for indoor installation. Supplied in a reel of 100 meters.
It has triple shielding (TSH) giving it a Class A++ shielding that provides greater immunity to interference. Its use is recommended on routes with high levels of electromagnetic noise. It is also a cable with Euroclass Eca classification of non-propagation of the flame in case of fire.
Its composition in copper makes it have a great performance in the entire frequency band (TV-SAT).
Coaxial Cable SK2000plus Cu/Cu Class A++ Euroclass Eca Indoor PVC White (100m)
What are the main characteristics of Televes 4138 Coaxial Cable?
Copper conductors
Class A++ shielded
Eca Euroclass
White-colour external PVC sheath
75 Ohm characteristic impedance
Available in reels of different lengths
What technical specifications does the Televes 4138 Coaxial Cable have?
Type SK2000plus
Standard EN 50117-2-4
EuroClass Eca
Class A++
Inner conductor ? mm 1,02
Material CU
Res. Ohm/Km <22
Dielectric ? mm 4,6
Material PEE
Overlapped foil Aluminium + Polyester
Braid Material CuSn (98%Cu)
Dimensions (Ncx Nsx ?) 24 x 7 x 0.10
Res. Ohm/Km <10.5
Coverage % 82
2-nd foil Yes
Petrol-Jelly No
Outer sheath ? mm 6,7
Material PVC
Minimum bending radius mm 33,5
Screening attenuation @ 1GHz dB >105 (135 typ.)
Capacitance pF/m 54
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ?0,9
Velocity ratio % 84
Attenuations (dB/m)
Frequency (MHz)
5 0,02
47 0,05
90 0,06
200 0,09
500 0,14
800 0,18
1000 0,21
1350 0,24
1750 0,28
2050 0,3
2300 0,32
