Overlight WideBand Optical Amplifier 2 Outputs 13dB Televes
Overlight Series 13dB Broadband Amplifier with 2 Inputs and 2 Outputs from Televes

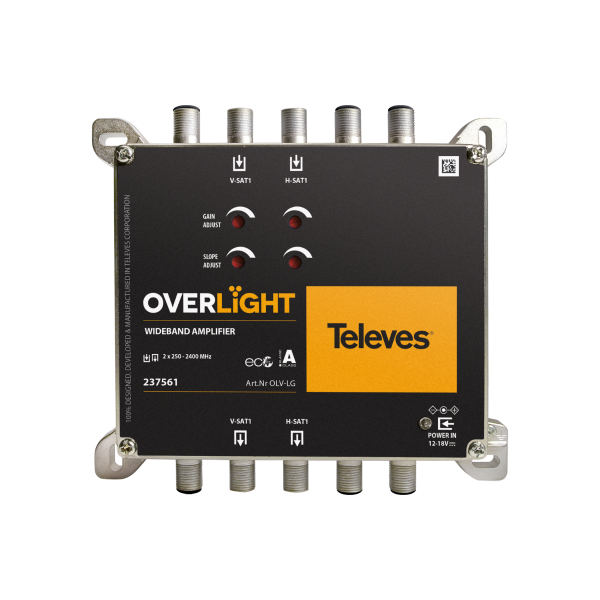

This is an Overlight series broadband amplifier. The Wideband amplifier transmits using a wide range of frequencies. In television systems, part or all of the frequency spectrum is available to users.
The LNB captures the complete satellite signal, distributing it into 2 universal outputs (vertical V and horizontal H) in a frequency range between 290 and 2340MHz. The amplifier has 2 inputs (vertical and horizontal), compensating for the losses of the installation’s coaxial cable. It has independent gain control (maximum gain of 13dB) and slope.
It can be powered by an external power source or from the Overlight transmitter device. For fixing we can use screws.
It has type F connectors and is used indoors. Its chassis is highly armored and made of zamak.
Technical Specifications of the 13dB Overlight Series Broadband Amplifier with 2 Inputs and 2 Outputs from Televes
?
Number of entries
?
2
Number of outputs
?
2
Bands
?
SAT
Frequency range
MHz
250…2400
Output level EN60728-3 IMD3 2tones -35dB
dB?V
118
Revenue
dB
13
Gain regulation range
dB
0…13
Slope regulation
dB
0…12
Isolation
dB
> 25
Supply voltage
Vdc
12…18
DC pass through SAT line
mA
500
Max current consumption (@12V)
mA
110
Max current (@18V)
mA
73
Max power consumption
IN
1.32
Protection index (IP)
?
twenty
?
